High Temperature 6015 2ZC3 Deep Groove Ball Bearing Axial Load For Ac Motor

    Buy cheap High Temperature 6015 2ZC3 Deep Groove Ball Bearing Axial Load For Ac Motor from wholesalers

    Buy cheap High Temperature 6015 2ZC3 Deep Groove Ball Bearing Axial Load For Ac Motor from wholesalers
    • Buy cheap High Temperature 6015 2ZC3 Deep Groove Ball Bearing Axial Load For Ac Motor from wholesalers
    • Buy cheap High Temperature 6015 2ZC3 Deep Groove Ball Bearing Axial Load For Ac Motor from wholesalers
    • Buy cheap High Temperature 6015 2ZC3 Deep Groove Ball Bearing Axial Load For Ac Motor from wholesalers

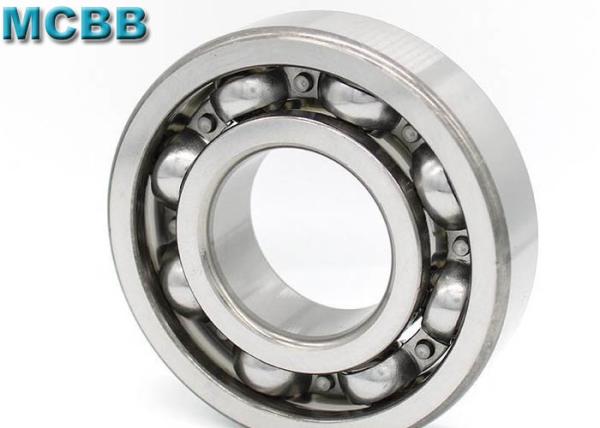

    High Temperature 6015 2ZC3 Deep Groove Ball Bearing Axial Load For Ac Motor

    Ask Lasest Price
    Brand Name : MCBB/ Customization/ Any famous brand
    Model Number : 6018 2ZC3
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Payment online by credit card, Dirct RMB from abroad
    Supply Ability : 30,0000pcs/month
    Delivery Time : Within 7days after confirmation
    • Product Details
    • Company Profile

    High Temperature 6015 2ZC3 Deep Groove Ball Bearing Axial Load For Ac Motor

    High Temperature 6015 2ZC3 Deep Groove Ball Bearing Axial Load For Ac Motor


    FAG deep groove ball bearing, Description,


    After 6015DDU is installed on the shaft of deep groove ball bearing, the axial displacement of the shaft or housing in both directions can be limited within the axial clearance range of the bearing, so the axial positioning can be made in both directions.

    In addition, this kind of bearing also has a certain centering ability, when relative to the shell hole tilt 2 '~ 10', still can work normally, but has a certain impact on the bearing life. Deep groove ball bearings 6015DDU cage is mostly steel plate stamping wave cage, large bearings are mostly car metal cage.


    SKF deep groove ball bearing, Specification,


    Bearing Model6015 2ZC3
    d75mm
    D115mm
    B20mm
    D2105.3mm
    Da max109mm
    d188.1mm
    da min81mm
    ra max1mm
    rmin1,1mm
    m0.676kg
    Cr42000 N
    C0r33500 1/min
    nG5600 1/min
    nB6300 1/min
    Cur1960 N


    Why choose mcbb bearing,

    Supporting driect RMB payment. NO MOQ.

    v groove ball bearing, Feature,


    1. Low friction torque, high rigidity, good turning accuracy.


    2. Bright metal luster, longer service life and higher precision.


    3. High bearing load resistance, suitable for demanding places.


    4. Fine workmanship, smooth edge, no burrs, little noise, high speed, not easy to hot.


    5. The bearing material is bearing steel, and the sealing material is divided into iron cover and rubber cover.


    6. The overall quality of the product is high and the quality is excellent to avoid the trouble of repeated disassembly and maintenance of the bearing.


    7. All of them are of high quality bearing steel. The speed of ordinary grade Z1 products is 2000-3000, and the speed of Z3 products is 8000-15000rpm.


    More model of bearings for reference,

    New No.Old NO.IDODBMass
    6200 nsk bearing200103090.032
    6201 nsk bearing2011232100.037
    6202 nsk bearing2021535110.045
    6203 nsk bearing2031740120.065
    6204 nsk bearing2042047140.106
    6205 nsk bearing2052552150.128
    6206 nsk bearing2063062160.199
    6207 nsk bearing2073572170.288
    6208 nsk bearing2084080180.368
    6209 nsk bearing2094585190.416
    6210 nsk bearing2105090200.463
    6211 nsk bearing21155100210.603
    6212 nsk bearing21260110220.789
    6213 nsk bearing21360120230.99
    6214 nsk bearing21470125241.084
    6215 nsk bearing21575130251.171
    6216 nsk bearing21680140261.448
    6217 nsk bearing21785150281.803
    6218 nsk bearing21890160302.17
    6219 nsk bearing21995170322.62
    6220 nsk bearing220100180343.19


    Application,


    Bearing 6015-2z can also be used for: square box hot melt adhesive machine disc dryer glazing machine shoe patch machine guide rail drying machine cycloid reducer laminating machine after machine magnetic separator stitching machine combination dryer electric glue machine sole pressing machine shield pump vacuum suction plate sewing machine binding machine.

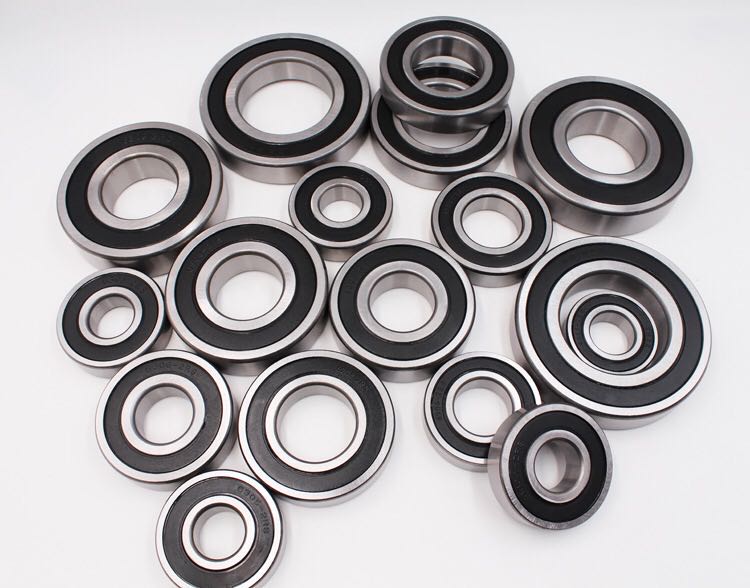

    Product pictures show,


    If you need this types bearings, welcome contact us for its price list.
