    High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant

    Ask Lasest Price
    Brand Name : MCBB/ Customization/ Any famous brand
    Model Number : 6324-ZZC3
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Payment online by credit card, Dirct RMB from abroad
    Supply Ability : 30,0000pcs/month
    Delivery Time : Within 7days after confirmation
    • Product Details
    • Company Profile

    High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant

    High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant


    Single row deep groove ball bearing application, Description,


    1. 6324 ball bearing is a single row deep groove ball bearings, open type, 2RS, ZZ.


    2. 6324 bearing belongs to deep groove ball bearing series, mainly used for storage tank, metallurgy, wire peeling machine, stir-fry machine, packaging machinery, packaging testing machine, guide column, guide sleeve, gear, impact testing machine, automotive lights and other equipment.


    3. Radial load and axial load acting at the same time, known as combined load. The most important factor that affects the bearing capacity of axial load is the Angle between it and the axis. The larger the Angle, the more suitable for bearing 6322 axial load! Bearing inner diameter: 110, outer diameter: 240;


    Deep groove ball bearing single row, Specification,


    Bearing Model6324/ 6324-2Z/C3, 6324-2RS/C3, 6324M
    d120mm
    D260mm
    B55mm
    D1214.9mm
    Da max246mm
    d1165.1mm
    da min134mm
    ra max2.5mm
    r min3mm
    m12.8kg in weight
    Cr225000N, basic rated dynamic load, radial
    C0r190000N, basic rated static load, radial
    nG6000 1/min, limit speed
    nB3850 1 1/min, reference speed
    Cur9000N, fatigue limit load, radial

    Why choose mcbb bearing,


    Supporting Paypal, credit card online. Direct factory sale.


    SKF deep groove ball bearing, Feature,


    The advantages of the 6324 bearing are: low noise at high speed, the structure can not be divided. When using 6322 bearing, it should be noted that: 6322 common parts: TN: injection molded nylon cage,TN9: injection molded fiberglass reinforced nylon 6,6 cage,VL0241: outer ring outer surface with alumina coating, insulation capacity up to 1000VDC.


    More model of 6300series,


    Bearing
    NO.
    Old NO.IDODBCrCorMax SpeedMax SpeedMass
    (Grease)(Oil)
    (mm)(mm)(mm)(kN)(kN)(r/min)(r/min)(kg)
    63003001035117.653.4818000240000.053
    63013011237129.725.0817000220000.06
    630230215421311.55.4216000200000.082
    630330317471413.56.5815000180000.115
    630430420521515.87.8813000160000.142
    630530525621720.611.311000130000.232
    630630630721926.7156600120000.346
    630730735802133.419.38500100000.457
    630830840902340.824700085000.639
    6309309451002552.831.8630075000.837
    6310310501102761.838600070001.082
    6311311551202971.544.8560067001.367
    6312312601303181.851.8500060001.71
    6313313651403393.860.5450053002.1
    6314314701503510568430050002.55
    6315315751603711376.8400048003.05
    6316316801703912386.5380045003.61
    6317317851804113296.5360043004.284
    63183189019043145108340040004.97
    63193199520045157122320038005.74
    632032010021547173140280036007.09
    632132110522549184153260032008.05
    632232211024050205178240030009.53
    6324324120260552282082200280012.2
    6326326130280582532422000260014.77
    6328328140300622752721900240018.33
    6330330150320652882951700220021.87
    6332332160340683133401600200026.43
    6334334170360723353781500190031.14

    Application,


    Bearing 6324 can also be used in: catering industry equipment pneumatic pump thermal shrinkage packaging machine concrete mechanical mixer ceramic cutting machine multi-functional packaging machine stone machinery aerospace sand making machine sealing machine brick making machine mixing equipment ceramic carving machine filling machine ceramic production line cement machinery vertical pump filling machine tile machinery.

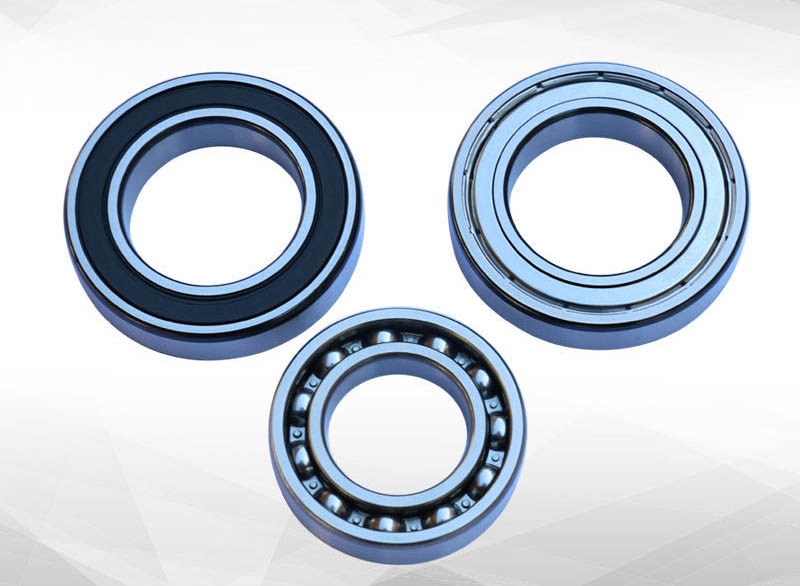

    Product pictures show,



    If you need this types bearings, welcome contact us for its price list.
