    B7013-C-2rsd-T-P4s-Ul Ntn Angular Contact Ball Bearings High Speed For Machine Tool

    Ask Lasest Price
    Brand Name : MCBB/ Customization/ Any famous brand
    Model Number : B7013
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB
    Supply Ability : 30,0000pcs/month
    Delivery Time : Within 7days after confirmation
    • Product Details
    • Company Profile

    B7013-C-2rsd-T-P4s-Ul Ntn Angular Contact Ball Bearings High Speed For Machine Tool

    B7013-C-2rsd-T-P4s-Ul Ntn Angular Contact Ball Bearing High Speed For Machine Tool


    4 point contact ball bearing, Description


    1. FAG b7013-c-2rsd-t-p4s bearing, b7013-c-2rsd-t-p4s main shaft bearing.


    2. FAG precision bearing machine tool spindle bearing b7013-c-t-p4s-ul high speed bearing.


    3. Main shaft bearing b7034-c-t-p4s, adjustment, paired installation, contact Angle = 15°, limited tolerance, its characteristics: radial load, one-way axial load,


    SKF angular contact bearing, Specification,


    The parameter of 3214S
    d65mm
    D100mm
    B18mm
    a20mm
    Da H1293mm
    da h1272mm
    r1 min1.1mm
    ra max1mm
    ra1 max0.6mm
    r min1.1mm
    m0.462kg
    Cr40000 N
    C0r35500 N
    nG Fett13000 1/min
    nG OI20000 1/min
    Cur2600N

    angle contact ball bearing, Feature,


    Large radial load capacity, large friction loss, suitable for higher speed, mainly used for machine tools, with P4 quality.


    Model bearings for reference,


    Bearing ModelInner DiameterOuter DiameterMass kg
    B7005-C-P425470.08
    B7005-E-P425470.08
    B7006-C-P430500.11
    B7006-E-P430500.11
    B7007-C-P435620.15
    B7007-E-P435620.15
    B7008-C-P440680.19
    B7008-E-P440680.19
    B7009-C-P445750.23
    B7009-E-P44575

    0.23

    B7010-C-P450800.25
    B7010-E-P450800.25
    B7011-C-P455900.37
    B7011-E-P455900.37
    B7012-C-P460950.4
    B7012-E-P460950.4
    B7013-C-P4651000.42
    B7013-E-P4651000.42
    B7014-C-P4701100.59
    B7014-E-P4701100.59
    B7015-C-P4751150.62
    B7015-E-P4751150.62
    B7016-C-P4801250.84
    B7016-E-P4801250.84
    B7018-C-P4901401.14
    B7018-E-P4901401.14
    B7020-C-P41001501.25
    B7020-E-P41001501.25

    Why choose us,


    Signed international sale contract to keep business in safe.


    Application,


    Bearing b7013-c-t-p4s can also be used for: rear binding machine, sliding guide rail, nailing machine, other unclassified bottom pressing machine, punching machine, dehumidifying machine, machine tool holder, sewing machine, changing speed machine, gluing machine, paper cutting machine, aluminum plastic packaging machine, machine tool guard, shoemaking machine, punching machine, light painting machine, impeller pump drying equipment.

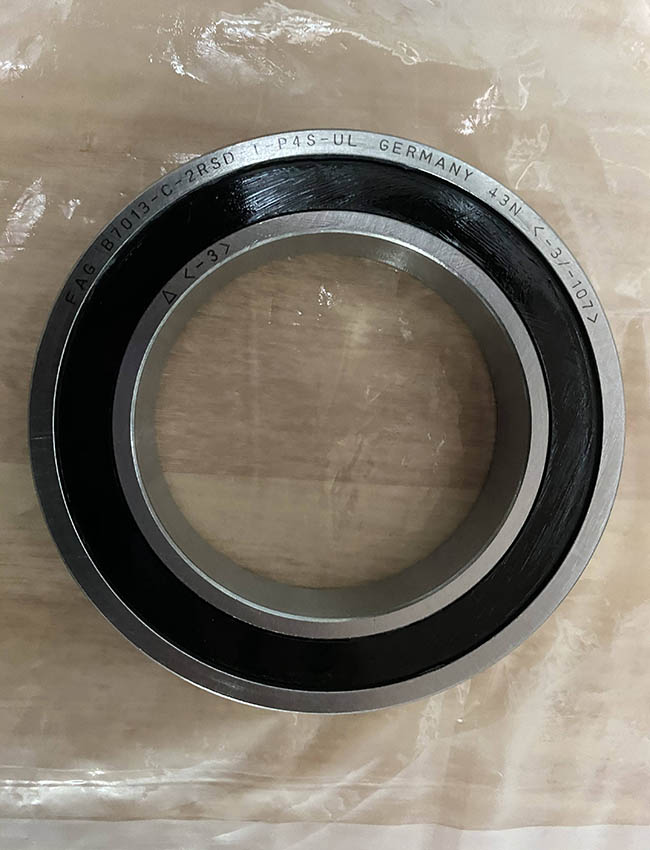

    Product pictures show,


    If you need, welcome contact us for price list. Here 24/7 in service.
