7324 BECMB Single Row Angular Contact Ball Bearings Brass Cage

    Buy cheap 7324 BECMB Single Row Angular Contact Ball Bearings Brass Cage from wholesalers

    Buy cheap 7324 BECMB Single Row Angular Contact Ball Bearings Brass Cage from wholesalers
    • Buy cheap 7324 BECMB Single Row Angular Contact Ball Bearings Brass Cage from wholesalers
    • Buy cheap 7324 BECMB Single Row Angular Contact Ball Bearings Brass Cage from wholesalers
    • Buy cheap 7324 BECMB Single Row Angular Contact Ball Bearings Brass Cage from wholesalers
    • Buy cheap 7324 BECMB Single Row Angular Contact Ball Bearings Brass Cage from wholesalers

    7324 BECMB Single Row Angular Contact Ball Bearings Brass Cage

    Ask Lasest Price
    Brand Name : MCBB/ Customization/ Any famous brand
    Model Number : 7324BECBM
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB
    Supply Ability : 30,0000pcs/month
    Delivery Time : Within 7days after confirmation
    • Product Details
    • Company Profile

    7324 BECMB Single Row Angular Contact Ball Bearings Brass Cage

    7324 BECMB Single Row Angular Contact Ball Bearing Brass Cage


    NTN angular contact ball bearing, Description,


    Manufacturer direct thrust Angle contact bearing 7324 precision high speed machine tool bearing.


    Angular contact thrust ball bearing, Specification,


    The parameter of 3214S
    d120mm
    D260mm
    B55mm
    a107mm
    D1207.1mm
    Da max246mm
    Db max253mm
    d1176.4mm
    da min134mm
    ri min1.1mm
    ra max2.5mm
    ra1 max1mm
    rmin3mm
    m12.5kg
    Cr275000 N
    e1.14
    X0.35
    Y0.57
    Y00.26
    C0r285000N
    nG3200 1/min
    nB2850 1/min
    Cur13900 N

    4 point contact ball bearing, Feature,


    A single row angular contact ball bearing can only bear axial load in one direction. When bearing radial load, additional axial force will be caused. And only the axial displacement of the shaft or housing in one direction can be limited.


    Model bearings for reference,


    Model no(ZZ or DDU)
    d(mm)
    D(mm)
    B(mm)
    W(KG)
    7300
    10
    35
    11
    0.053
    7301
    12
    37
    12
    0.060
    7302
    15
    42
    13
    0.082
    7303
    17
    47
    14
    0.12
    7304
    20
    52
    15
    0.14
    7305
    25
    62
    17
    0.23
    7306
    30
    72
    19
    0.35
    7307
    35
    80
    21
    0.46
    7308
    40
    90
    23
    0.63
    7309
    45
    100
    25
    0.83
    7310
    50
    110
    27
    1.05
    7311
    55
    120
    29
    1.35
    7312
    60
    130
    31
    1.7
    7313
    65
    140
    33
    2.1
    7314
    70
    150
    35
    2.5
    7315
    75
    160
    37
    3.00
    7316
    80
    170
    39
    3.6
    7317
    85
    180
    41
    4.25
    7318
    90
    190
    43
    4.9
    7319
    95
    200
    45
    5.56
    7320
    100
    215
    47
    7.00
    7321
    105
    225
    49
    8.25
    7322
    110
    240
    50
    9.55
    7324
    120
    260
    55
    12.5
    7326
    130
    280
    58
    17.5

    Why choose us,


    Supporting Paypal or directly RMB.


    Application,


    Bearing 7324-b-tvp can also be used for: spiral plate heat exchanger worm reducer vibration testing machine lift fire pump pressure testing machine machine accessories balancing machine cryocooler dumper strength testing machine pressure molding machine column tube heat exchanger fatigue testing machine forklift torsion testing machine bending testing machine dry cooling tower construction machinery, construction machinery.

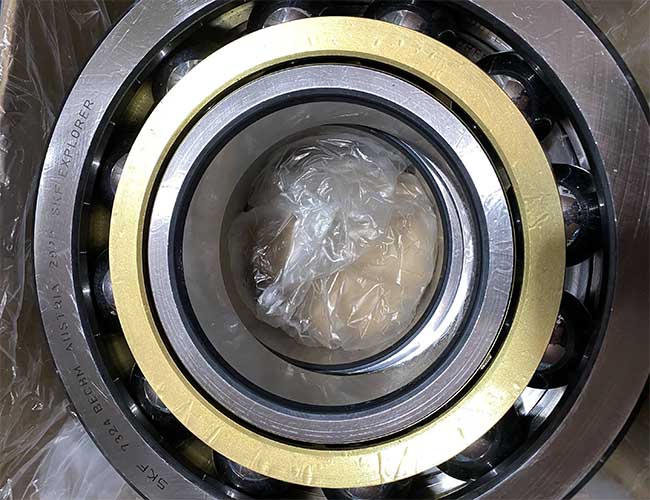

    Product pictures show,



    If you need, welcome contact us for price list. Here 24/7 in service.
