    Y Design SY60TF 3400 R / Min Pillow Block Ball Bearing

    Ask Lasest Price
    Brand Name : MCBB/ Customization
    Model Number : SY60TF
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, , T/T, Western Union, MoneyGram, Paypal, Direct RMB, Payment online by credit card
    Supply Ability : 30,0000pcs/month
    Delivery Time : Within 7days after confirmation
    • Product Details
    • Company Profile

    Y Design SY60TF 3400 R / Min Pillow Block Ball Bearing

    Y Design High Temperature Cast Iron Pillow Block Bearing SY60TF


    Pillow block bearing insert, Description,


    1. SY60TF vertical bearing box assembly base unit with shaft bearing mechanical general bearing.


    2. SKF provides all kinds of seated bearings that are ready to be installed, including seated bearing units, spherical bearings and seated bearing accessories, bearing units, filled with grease and sealed, which can mature with certain shaft alignment errors. SKF manufactures bearing housings with reliable quality and excellent performance. They are favored by customers for their fast installation and excellent rotation performance.

    Split housing pillow block bearings, Specification,


    Bearing ModelSY60TF
    Materialcast iron
    d60mm
    A60mm
    A142mm
    A539mm
    B65.1mm
    H137.5mm
    H169.9mm
    H226.5mm
    J190.5mm
    J max202mm
    L240mm
    N29.5mm
    N118mm
    s139.7mm
    RG1/4-28 UNF
    R15.5mm
    Ra45°
    DN6.5mm
    SWn7mm
    GN1-4-28 SEA-LT
    J6222mm
    J721mm
    N44mm
    d1about 75.64mm
    B410mm
    C52.7kN
    C036kN
    Pu1.53kN
    Limited speed3400 r/min
    Weight4.4 kg
    G2M10*1
    N5mm
    Screw torque16.5N.m
    G16mm
    G0.625 in
    Bearing blockSY512M
    BearingYAR212-2F

    Browning pillow block bearings, Feature,


    1. Easy installation


    2.Mialignment.


    3. Free-maintenance.


    Why choose mcbb bearing?


    Welcome small order, NO MOQ, 1pcs is ok.


    Product pictures show,


    More bearing model for you reference,

    Model NO.Length(mm)Width(mm)Thickness(mm)Weight(kg)
    UCP2011273860.70.76
    UCP2021273860.70.74
    UCP2031273860.70.72
    UCP20412738640.7
    UCP2051403869.50.76
    UCP20616044821.25
    UCP20716748921.55
    UCP20818052981.9
    UCP209189541062.2
    UCP210204571122.75
    UCP211217601253.3
    UCP212238661374.7
    UCP213262701495.6
    UCP214266721556.6

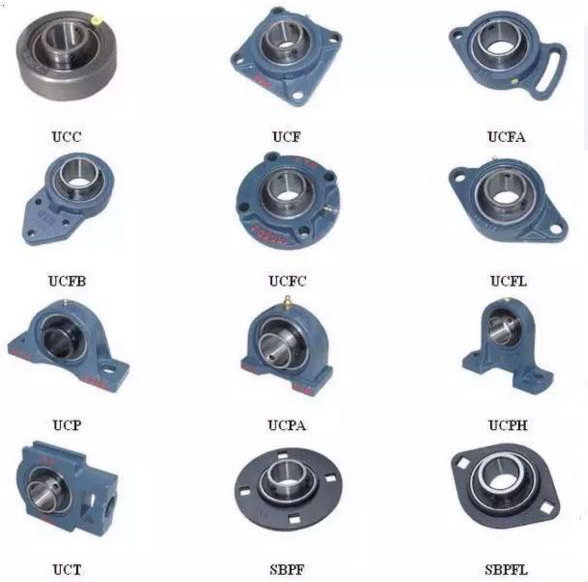

    There are UCC, UCF, UCFA, UCFB, UCFC, UCFL, UCP, UCPA, CUPH, UCT, SBPF and SBPFL series for you choosing.



    Application,


    This kind SY60TF pillow block bearing is widely use for papermaking machinery, reduction gears, railway car axles, rolling mill gear box bearing housings, rolling mill rollers, crushers, vibrating screens, woodworking machinery, various industrial reducers, vertical self-aligning bearings with seats.



    If you need this types bearings price list, action contact us for it.
