Brand Name : | MCBB/ Customization/ Any famous brand |
Model Number : | 2305M self-aligning ball bearings |
Certification : | ISO9001:2008 |
Price : | negotiation |
Payment Terms : | L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB |
Supply Ability : | 200,000 PCS/Month |
Delivery Time : | Within 7days after confirmation |

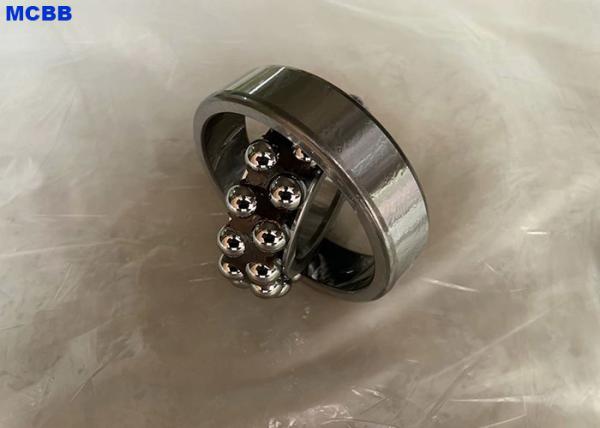

High Precision Spherical Ball Bearings Brass Cage Metric Spherical Bearing
Description,
The self-aligning ball bearing is a bearing equipped with a spherical ball between the inner ring of the two
raceways and the outer ring of the spherical raceway.
Self-aligning ball bearings are suitable for heavy loads and impact loads, precision instruments, low noise
motors, automobiles, motorcycles, metallurgy, rolling mills, mining, petroleum, paper, cement, sugar and
other industries and general machinery.
Metric spherical bearing, Specification,
Item No | 2305M bearing |
Size | 25*62*24mm |
Material | Chrome steel/stainless steel |
Clearance | C0 C2 C3 C4 C5 |
Noise Level | Z1 Z2 Z3 Z4 |
Vibration | V1 V2 V3 V4 |
Lubrication | Oil / Grease / Dry |
Service | OEM/ODM/Laser printing/Custom design |
MOQ | 1pcs |
Package | 1. Tube Packing+Outer Carton of bearings 2. Single Box+Plastic Bag+Outer Carton of bearings 3. As the customers' requirement |
Delivery Time | Within 2-3 days if in stock,5-10 days if not in stock |
Payment | T/T , PayPal, Trade Assurance |
Port | Guangzhou,Shenzhen,Shanghai |
V groove ball bearing, More bearing model for reference,
6000 series | 6200 Series | ||||||
N0. | d - mm | D - mm | W - mm | N0. | d - mm | D - mm | W - mm |
604 | 4 | 12 | 4 | 624 | 4 | 13 | 5 |
605 | 5 | 14 | 5 | 625 | 5 | 16 | 5 |
606 | 6 | 17 | 6 | 626 | 6 | 19 | 6 |
607 | 7 | 19 | 6 | 627 | 7 | 22 | 7 |
608 | 8 | 22 | 7 | 628 | 8 | 24 | 8 |
609 | 9 | 24 | 7 | 629 | 9 | 26 | 8 |
6000 | 10 | 26 | 8 | 6200 | 10 | 30 | 9 |
6001 | 12 | 28 | 8 | 6201 | 12 | 32 | 10 |
... | ... | ... | ... | ... | ... | ... | ... |
6300 Series | 6400 Series | ||||||
N0. | d - mm | D - mm | W - mm | N0. | d - mm | D - mm | W - mm |
6300 | 10 | 35 | 11 | 6401 | 10 | 35 | 11 |
6301 | 12 | 37 | 12 | 6403 | 12 | 37 | 12 |
6302 | 15 | 42 | 13 | 6404 | 20 | 72 | 19 |
... | ... | ... | ... | ... | ... | ... | ... |
6800 Series | 6900 Series | ||||||
N0. | d - mm | D - mm | W - mm | N0. | d - mm | D - mm | W - mm |
685 | 5 | 11 | 3 | 693 | 3 | 8 | 3 |
686 | 6 | 13 | 3.5 | 694 | 4 | 11 | 4 |
687 | 7 | 14 | 3.5 | 695 | 5 | 13 | 4 |
688 | 8 | 16 | 4 | 696 | 6 | 15 | 5 |
689 | 9 | 17 | 4 | 697 | 7 | 17 | 5 |
6800 | 10 | 19 | 5 | 698 | 8 | 19 | 6 |
6802 | 15 | 24 | 5 | 6900 | 10 | 22 | 6 |
... | ... | ... | ... | ... | ... | ... | ... |
If you need bearing price, welcome contact us.
![]() |
