Brand Name : | MCBB/ Customization/ Any famous brand |
Model Number : | 9067/9195 |
Certification : | ISO9001:2008 |
Price : | negotiation |
Payment Terms : | L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB |
Supply Ability : | 30,0000pcs/month |
Delivery Time : | Within 7days after confirmatin |

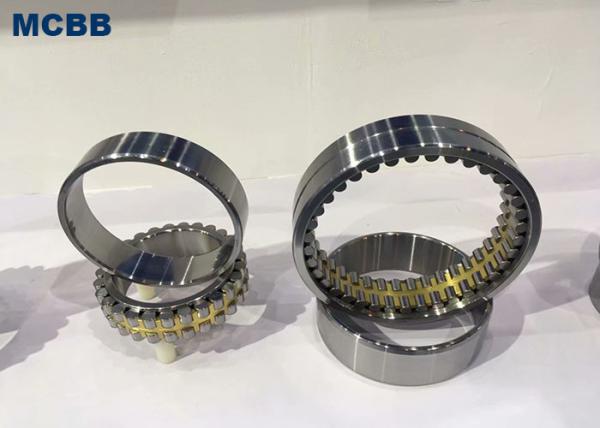

Double Row Tapered Roller Bearings High Precision Metric Roller Bearings
Features Of Roller Bearing,
1. The roller and the raceway are in line contact or underline
contact.
2. Large radial load, carrying capacity and friction coefficient is small.
3. Suitable for high speed runing equipment.
4. Nner ring and outer ring can be separated, easy to install and remove.
Why Choose us?
1. We solve from producting to ending to reach customer hands,
including high advantage shipment and documents.
2. MCBB BEARING have been integrated manufacturer and exported kinds of bearing to offer a rich experience for customer to save the cost.
Double Row Tapered Roller Bearings High Precision Metric Roller Bearings,
Model | Dimension (mm) | Cr(N) | Cor(N) | (rpm) | |||||||
d | D | T | B | C | r1(min) | r2(min) | da(min) | db(max) | |||
L21549/L21511 | 15.875 | 34.988 | 10.998 | 10.998 | 8.712 | 1.3 | 1.3 | 13800 | 13400 | 11000 | 15000 |
11590/11520 | 15.875 | 42.862 | 14.288 | 14.288 | 9.525 | 1.5 | 1.5 | 17800 | 17800 | 8500 | 12000 |
H-11590/H-11520 | 15.875 | 42.863 | 14.288 | 14.288 | 9.525 | 1.6 | 1.6 | 17800 | 17700 | 8600 | 12000 |
A6067/A6157 | 16.993 | 39.992 | 12.014 | 11.153 | 9.525 | 0.8 | 1.3 | 14900 | 15700 | 10000 | 14000 |
LM11749/LM11710 | 17.462 | 39.878 | 13.843 | 14.605 | 10.668 | 1.3 | 1.3 | 23400 | 23000 | 10000 | 13000 |
H-LM11749/H-LM11710 | 17.463 | 39.878 | 13.843 | 14.605 | 10.668 | 1.2 | 1.2 | 25400 | 26000 | 8800 | 12000 |
A6075/A6157 | 19.05 | 39.992 | 12.014 | 11.153 | 9.525 | 1 | 1.3 | 14900 | 15700 | 10000 | 14000 |
H-LM11949/H-LM11910 | 19.05 | 45.237 | 15.494 | 16.637 | 12.065 | 1.2 | 1.2 | 29400 | 30100 | 7800 | 11000 |
LM11949/LM11910 | 19.05 | 45.237 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 29900 | 30500 | 9000 | 12000 |
5075/5185 | 19.05 | 47 | 14.381 | 14.381 | 11.112 | 1.3 | 1.3 | 24900 | 25400 | 8500 | 11000 |
H-09067/H-09195 | 19.05 | 49.225 | 18.034 | 19.05 | 14.288 | 1.2 | 1.2 | 37700 | 37700 | 7500 | 10000 |
9067/9195 | 19.05 | 49.225 | 18.034 | 19.05 | 14.288 | 1.3 | 1.3 | 37500 | 37500 | 8500 | 11000 |
9067/9196 | 19.05 | 49.225 | 21.209 | 19.05 | 17.463 | 1.3 | 1.5 | 37500 | 37500 | 8500 | 11000 |
9067/9194 | 19.05 | 49.225 | 21.209 | 19.05 | 17.463 | 1.3 | 3.5 | 37500 | 37500 | 8500 | 11000 |
9078/9195 | 19.05 | 49.225 | 19.845 | 21.539 | 14.288 | 1.3 | 1.3 | 37500 | 37500 | 8500 | 11000 |
9078/9196 | 19.05 | 49.225 | 23.02 | 21.539 | 17.463 | 1.3 | 1.5 | 37500 | 37500 | 8500 | 11000 |
9078/9194 | 19.05 | 49.225 | 23.02 | 21.539 | 17.463 | 1.3 | 3.5 | 37500 | 37500 | 8500 | 11000 |
9074/9195 | 19.05 | 49.225 | 19.845 | 21.539 | 14.288 | 1.3 | 1.3 | 37500 | 37500 | 8500 | 11000 |
9074/9196 | 19.05 | 49.225 | 23.02 | 21.539 | 17.463 | 1.3 | 1.5 | 37500 | 37500 | 8500 | 11000 |
9074/9194 | 19.05 | 49.225 | 23.02 | 21.539 | 17.463 | 1.3 | 3.5 | 37500 | 37500 | 8500 | 11000 |
5079/5185 | 19.987 | 47 | 14.381 | 14.381 | 11.112 | 1.5 | 1.3 | 24900 | 25400 | 8500 | 11000 |
12580/12520 | 20.638 | 49.225 | 19.845 | 19.845 | 15.875 | 1.5 | 1.5 | 36000 | 37000 | 8000 | 11000 |
H-M12649/H-M12610 | 21.43 | 50.005 | 17.526 | 18.288 | 13.97 | 1.17 | 1.17 | 39100 | 40700 | 7000 | 10000 |
M12649/M12610 | 21.43 | 50.005 | 17.526 | 18.288 | 13.97 | 1.3 | 1.3 | 37000 | 37500 | 8000 | 11000 |
H-LM12749/H-LM12710 | 22 | 45.237 | 15.494 | 16.637 | 12.065 | 1.27 | 1.27 | 30100 | 34600 | 7400 | 10000 |
LM12749/LM12710 | 22 | 45.237 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 28700 | 33000 | 8500 | 11000 |
H-LM12749/H-LM12711 | 22 | 45.975 | 15.494 | 16.637 | 12.065 | 1.27 | 1.27 | 30100 | 34600 | 7400 | 10000 |
7087/7196 | 22.225 | 50.005 | 13.495 | 14.26 | 9.525 | 1.3 | 1 | 26000 | 27700 | 7500 | 10000 |
These Models are only part of our product, If you need other
models, please contact us!!!

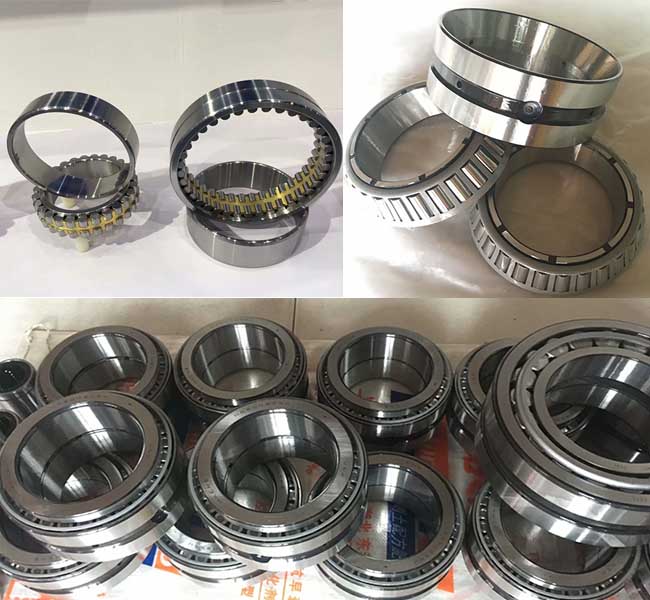

Product Show,
The Package of Taper Roller Bearing,
The Shipment of Taper Roller Ball Bearing,
1. For the small weight, suggest to choose Express by door to door.
For this way, no need make custom on your side.
2. 100kgs or Above 100kgs, suggest to choose by Air. The cost is cheaper than by Express by door to door.
3. For the large weight, suggest to choose by sea, to save the
cost.
Action Now to contact us,
If you need, welcome contact us for price list.
![]() |
