Brand Name : | MCBB/ Customization/ Any famous brand |
Model Number : | SA15es rod end ball bearing |
Certification : | ISO91000:2008 |
Price : | negotiation |
Payment Terms : | L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB |
Supply Ability : | 500,000pcs/week |
Delivery Time : | Within 7days after confirmation |

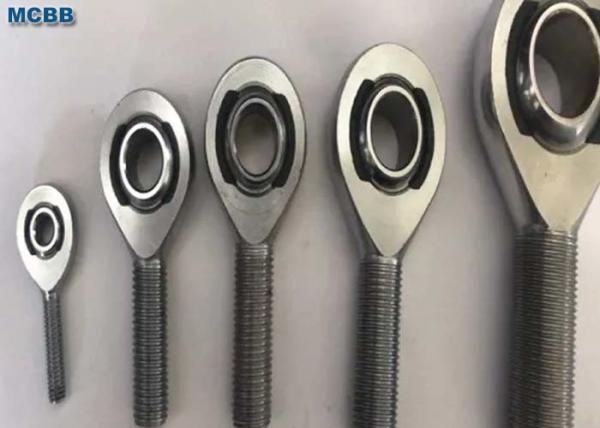

Stainless Steel Ball Joint Rod End Bearing SA15ES Durable Anti Rust
More bearing models for reference,
Model | dimensionmm/inch) | d | angle | (KN) | weight | |||||||
d+0.03 | B | C1 | d2 | d3 | h | L1 | (L2) | ≈ kg | ||||
-0.01 | UNF-2A | |||||||||||
XM3 | 4.826 | 7.92 | 6.35 | 15.88 | 10-32 | 31.75 | 19.05 | 39.69 | 11.11 | 10 | 4.4 | 0.013 |
XM3 | 0.19 | 0.312 | 0.25 | 0.625 | 10-32 | 1.25 | 0.75 | 1.562 | 0.437 | 10 | 4.4 | 0.013 |
XM4 | 6.35 | 9.53 | 7.14 | 19.05 | 2001-4-28 | 39.67 | 25.4 | 49.2 | 12.7 | 13 | 8.2 | 0.018 |
XM4 | 0.25 | 0.375 | 0.281 | 0.75 | 2001-4-28 | 1.562 | 1 | 1.937 | 0.5 | 13 | 8.2 | 0.018 |
XM5 | 7.938 | 11.1 | 8.74 | 22.23 | 5/16-24 | 47.63 | 31,75 | 58.75 | 15.88 | 10 | 12.3 | 0.031 |
XM5 | 0.3125 | 0.437 | 0.344 | 0.875 | 5/16-24 | 1.875 | 1.25 | 2.312 | 0.625 | 10 | 12.3 | 0.031 |
XM6 | 9.525 | 12.7 | 10.31 | 25.4 | 2003-8-24 | 49.22 | 31.75 | 61.92 | 18.26 | 9 | 17.8 | 0.049 |
XM6 | 0.375 | 0.5 | 0.406 | 1,000 | 2003-8-24 | 1.938 | 1.25 | 2.687 | 0.719 | 9 | 17.8 | 0.049 |
XM7 | 11.112 | 14.27 | 11.1 | 28.58 | 7/16-20 | 53.98 | 34.93 | 68.27 | 20.62 | 11 | 18.8 | 0.072 |
XM7 | 0.4375 | 0.562 | 0.437 | 1.125 | 7/16-20 | 2.125 | 1.375 | 2.678 | 0.812 | 11 | 18.8 | 0.072 |
XM8 | 12.7 | 15.88 | 12.7 | 33.32 | 2001-2-20 | 61.92 | 38.1 | 78.58 | 23.8 | 9 | 28.7 | 0.113 |
XM8 | 0.5 | 0.625 | 0.5 | 1.312 | 2001-2-20 | 2.438 | 1.5 | 3.093 | 0.937 | 9 | 28.7 | 0.113 |
XM10 | 15.875 | 19.05 | 14.27 | 38.1 | 2005-8-18 | 66.68 | 41.28 | 85.73 | 28.58 | 11 | 32.9 | 0.172 |
XM10 | 0.625 | 0.75 | 0,562 | 1,500 | 2005-8-18 | 2.625 | 1.625 | 3.375 | 1.125 | 11 | 32.9 | 0.172 |
XM12 | 19.05 | 22.23 | 17.45 | 44.45 | 2003-4-16 | 73.02 | 44.45 | 95.25 | 33.33 | 10 | 48.6 | 0.272 |
Rod end ball bearing, Features,
1. Rod end housing with weldable base and dowel pin.
2. It is made up of GE...ES or GE...ES 2RS and rod end housing.
3. Rod end housing with lubricating hole and grease nipple.
If you need bearing prices, welcome contact us.
![]() |
