Durable Pillow Block Ball Bearing Split Plummber Block Housing SNL522

    Buy cheap Durable Pillow Block Ball Bearing Split Plummber Block Housing SNL522 from wholesalers

    Buy cheap Durable Pillow Block Ball Bearing Split Plummber Block Housing SNL522 from wholesalers
    • Buy cheap Durable Pillow Block Ball Bearing Split Plummber Block Housing SNL522 from wholesalers
    • Buy cheap Durable Pillow Block Ball Bearing Split Plummber Block Housing SNL522 from wholesalers
    • Buy cheap Durable Pillow Block Ball Bearing Split Plummber Block Housing SNL522 from wholesalers
    • Buy cheap Durable Pillow Block Ball Bearing Split Plummber Block Housing SNL522 from wholesalers

    Durable Pillow Block Ball Bearing Split Plummber Block Housing SNL522

    Ask Lasest Price
    Brand Name : MCBB/ Customization/ Any famous brand
    Model Number : SNL522
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online
    Supply Ability : 30,0000pcs/month
    Delivery Time : Within 7days after confirmation
    • Product Details
    • Company Profile

    Durable Pillow Block Ball Bearing Split Plummber Block Housing SNL522

    Durable Pillow Block Ball Bearing Split Plummber Block Housing SNL522


    SNL522 Description, flange mount ball bearing,


    1. The SNL housing adds some support and wall thickness around the coupling bolt holes to make the bottom of the housing stronger. Therefore, the connection bolt can be locked more tightly, to avoid bearing housing due to excessive stress and deformation.


    2. Larger contact area: some support parts were added at the bottom of the SNL bearing housing, thus increasing the contact area between the base and the support surface, thus improving the heat dissipation effect of the bearing outer ring to the support surface.


    SNL522 Specification, sealed pillow block bearings,


    Split Plummbeer Block Housing NSL522 Parameter (mm)
    dadbDaCaDbAA1HH1H2JJ1LNN1J6N4
    11012520080147.517512024212545350704102418378max8

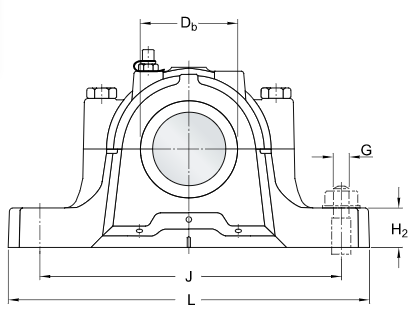

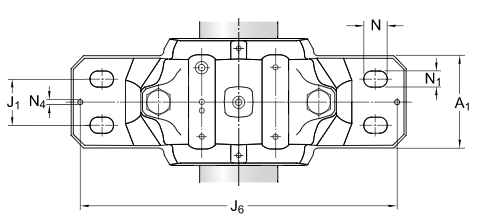

    Dimension Picture Show


    Feature, stainless steel pillow block bearings,


    Durable Pillow Block Ball Bearing Split Plummber Block Housing SNL522 with housing mainly used in motorcycle rear axle wheel hub, any very heavy machine tool's main shafts, axletree axle boxes or any tramsission application.


    More model bearings,


    Bearing Model

    Specification(dxDxH)

    Wegith kgs

    SNL504

    17x47x35

    1.2

    SNL505

    20x52x40

    1.45

    SNL506

    25x62x50

    2

    SNL507

    30x72x50

    2.2

    SNL508

    35x80x60

    2.9

    SNL509

    40x85x60

    2.9

    SNL510

    45x90x60

    3.2

    SNL511

    50x100x70

    4.4

    SNL512

    55x110x70

    5.1

    SNL513

    60x120x80

    6.5

    SNL516

    70x140x95

    9.5

    SNL517

    75x150x95

    10

    SNL518

    80x160x100

    12.5

    SNL520

    90x180x112

    17.6

    SNL522

    100x200x125

    22

    SNL524

    110x210x140

    26.2

    SNL526

    115x230x150

    33

    SNL528

    125x250x150

    40

    SNL530

    135x270x160

    49

    SNL532

    140x290x170

    55

    Cast Iron Split Plummber Block Housing Pillow Block Ball Bearing SNL522


    Pictures of bearings,

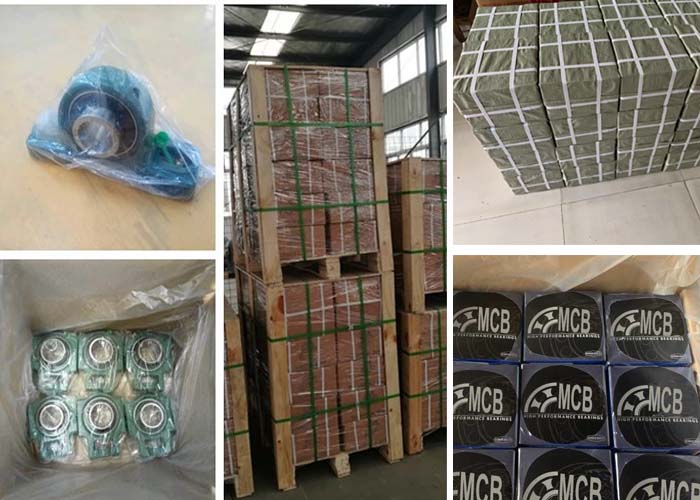

    Pillow Block Ball Bearing Package,

    Mulit package way, it will per customer requirement to finish. Welcome your FAQ. Trusting we will be your special supplier.



    If you need, welcome contact us for price list. Trusting you will like our service and price. The following is our 24hours in service.
