    32209JR High Speed Tapered Roller Bearings Special Bearing For Pelletizing Machine

    Ask Lasest Price
    Brand Name : MCBB/ Customization/ Any famous brand
    Model Number : 32209JR
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB
    Supply Ability : 30,0000pcs/month
    Delivery Time : Within 7days after confirmatin
    • Product Details
    • Company Profile

    32209JR High Speed Tapered Roller Bearings Special Bearing For Pelletizing Machine

    32209JR Tapered Roller Bearing Special Bearing For Pelletizing Machine

    KOYO 30322JR bearing size parameter editing,


    Model: 30322JR [1]


    d (inner diameter): 110mm


    OD (outer diameter): 240mm


    T (thickness): 54.5mm


    B (thickness): 50mm


    r (minimum): 4


    r1 (minimum): 3


    Cr (rated dynamic load): 481kN


    Cor (Static Static Load): 590kN


    Grease (grease lubrication): 1600rpm


    Oil (oil lubrication): 2100rpm


    Specification,


    Bearing NO.

    d

    D

    B / C / T


    Grease


    Oil

    (kN)
    Dynamic

    (kN)
    Static

    Mass

    30204

    20

    47

    14/12/15.25

    8000

    10000

    28.2

    30.6

    0.126

    30205

    25

    52

    15/13/16.25

    7000

    9000

    32.2

    37

    0.154

    30305

    25

    62

    17/15/18.25

    6300

    8000

    46.9

    48.1

    0.263

    32305

    25

    62

    24/20/25.25

    6300

    8000

    61.6

    68.8

    0.368

    30206

    30

    62

    16/14/17.25

    6000

    7500

    43.3

    50.5

    0.231

    30306

    30

    72

    19/16/20.75

    5600

    7000

    59

    63.1

    0.387

    32206

    30

    62

    20/17/21.25

    6000

    7500

    51.8

    63.7

    0.287

    32306

    30

    72

    27/23/28.75

    5600

    7000

    81.6

    96.4

    0.562

    30207

    35

    72

    17/15/18.25

    5300

    6700

    54.2

    63.5

    0.331

    30307

    35

    80

    21/18/22.75

    5000

    6300

    75.3

    82.6

    0.515

    32207

    35

    72

    23/19/24.25

    5300

    6700

    70.6

    89.5

    0.445

    32307

    35

    80

    31/25/32.75

    5000

    6300

    99

    118.3

    0.763

    30208

    40

    80

    18/16/19.75

    5000

    6300

    63

    74

    0.422

    30308

    40

    90

    23/20/25.25

    4500

    5600

    90.9

    107.6

    0.747

    32208

    40

    80

    23/19/24.75

    5000

    6300

    77.9

    97.2

    0.532

    32308

    40

    90

    33/27/35.25

    4500

    5600

    115.7

    147.8

    1.04

    31308

    40

    90

    13/17/25.25

    4500

    5600

    81.4

    96.4

    0.727

    30209

    45

    85

    19/16/20.75

    4500

    5600

    67.9

    83.6

    0.474

    30309

    45

    100

    25/22/27.25

    4000

    5000

    108.9

    129.8

    0.984

    32209

    45

    85

    23/19/24.75

    4500

    5600

    80.7

    104

    0.573

    32309

    45

    100

    36/30/38.25

    4000

    5000

    145.3

    189.4

    1.4


    Our advantage,


    1. Quality assurance—Each batch of goods is strictly controlled by relevant staff.


    2. price concessions-due to our different purchase channels, we have an advantage in price.


    3. technical support-to provide you with the problems of bearing selection, installation, maintenance and replacement of different brand models.


    4. after-sales service-a perfect after-sales service system has been established to avoid the worries of customers

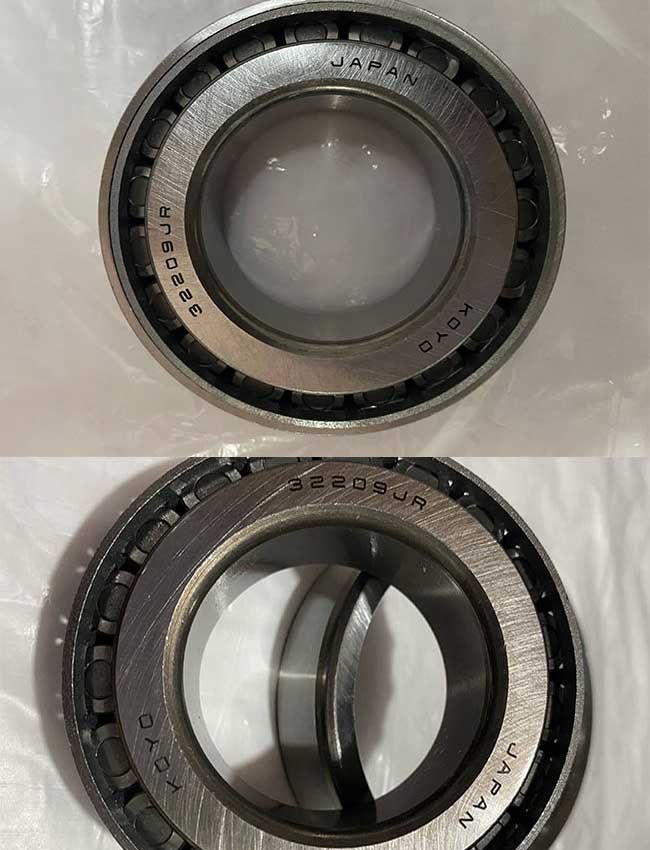

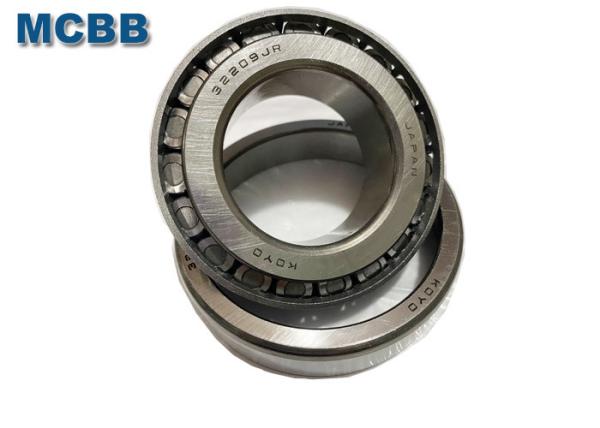

    Show Pictures,




    Action Now to contact us,


    If you need, welcome contact us for price list.
