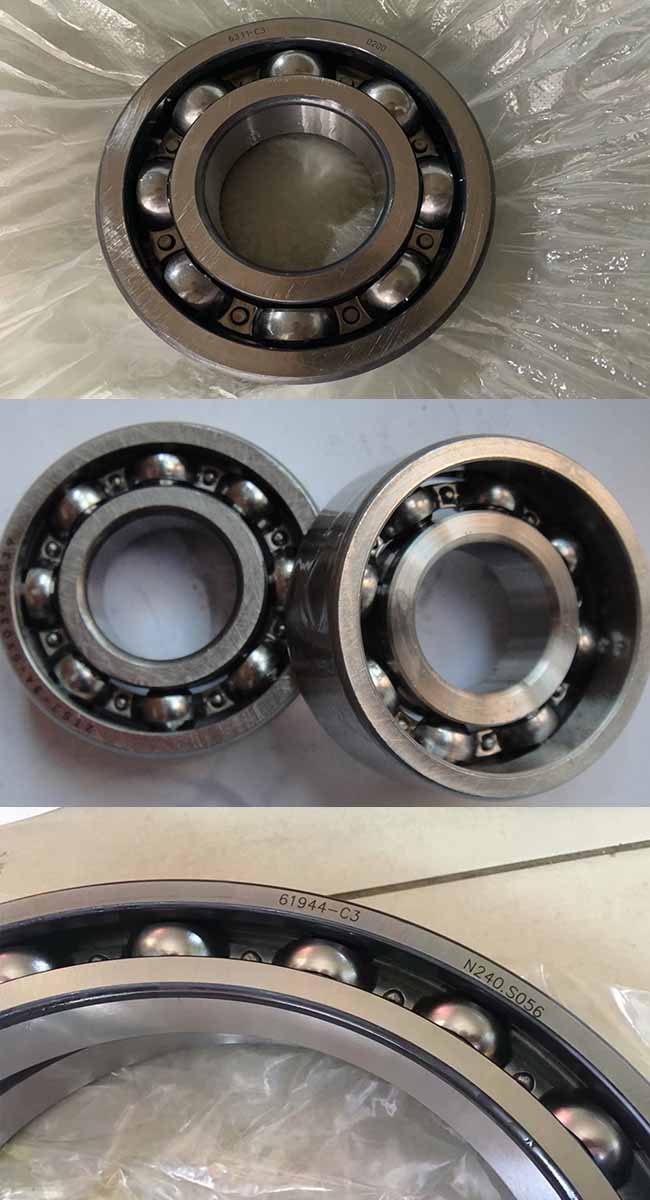

Industrial Deep Groove Thrust Ball Bearing Auto Parts Use 6207 6208 6209
Description,
1. Deep groove ball bearings are non-separable bearings. The inner and outer raceways are in the form of deep grooves, which are mainly used to support radial loads. However, when the radial clearance of the bearing is increased, it has a certain angular contact bearing performance and can withstand the diameter. Axial combined load. It can also be used to bear pure axial load when the speed is high and thrust ball bearings are not suitable.
2. Open bearings, which have no special requirements for installation and sealing, are widely used in various types of machinery.
3. Single and double-sided with dust cover Z, 2Z, also called
non-contact seals RZ, 2RZ.
4. Single and double-sided contact seals RS 2RS, this type of
bearing is already filled with a suitable amount of lubricant
during manufacture, no cleaning is required during installation,
and grease is installed.
5. Grease has rust prevention and sealing properties. This type of bearing can be used for various types of machinery. It is especially suitable for environments where the environment is poor and the bearing needs to have a sealing function.
V groove guide bearing, Specification,
Bearing Model | 6207 6208 6209 |
Bore size | 1-90mm |
Precision Rate | P6 (P0, P5... in optional) |
Material | Chrome steel, Gcr15 |
Feature | working long life |
Lubrication | oil |
Stock | aviable products |
Type | ball bearing |
Outside size | 1-100mm |
Number of row | single |
Application | motor |
Sample | offering in free |
Seal | 2RS, ZZ, open type |
Package | single color box |
Service | supporting OEM, ODM |
Brand | supporting OEM |
v groove sealed ball bearings, Feature,
1. Using high-quality steel, high-temperature quenching treatment.
2. Channels are finely ground and super-quiet to improve rotation
performance.
3. High-speed silent operation using venous steel balls.
4. Double cover is maintenance-free and effectively prevents dust.
5. Select brand-name grease for longer life.
More ball bearings of 6200 series,
Bearing NO. | Old NO. | ID(mm) | OD(mm) | B(mm) |
6200 | 200 | 10 | 30 | 9 |
6201 | 201 | 12 | 32 | 10 |
6202 | 202 | 15 | 35 | 11 |
6203 | 203 | 17 | 40 | 12 |
6204 | 204 | 20 | 47 | 14 |
6205 | 205 | 25 | 52 | 15 |
6206 | 206 | 30 | 62 | 16 |
6207 | 207 | 35 | 72 | 17 |
6208 | 208 | 40 | 80 | 18 |
6209 | 209 | 45 | 85 | 19 |
6210 | 210 | 50 | 90 | 20 |
6211 | 211 | 55 | 100 | 21 |
6213 | 212 | 60 | 110 | 22 |
6214 | 213 | 60 | 120 | 23 |
6215 | 214 | 70 | 125 | 24 |
6216 | 215 | 75 | 130 | 25 |
6217 | 216 | 80 | 140 | 26 |
6218 | 217 | 85 | 150 | 28 |
6219 | 218 | 90 | 160 | 30 |
6220 | 219 | 95 | 170 | 31 |
Why choose us?
NO MOQ, 1pcs is ok. Free sample.
Application,
Packaging,
Welcome contact us for its price list.
![]() |
