Brand Name : | MCBB/ Customization/ Any famous brand |
Model Number : | 606 2rs |
Certification : | CE |
Price : | negotiation |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Payment online by credit card, Direct RMB from abroad |
Supply Ability : | 30,0000pcs/month |
Delivery Time : | Within 7days after confirmation |

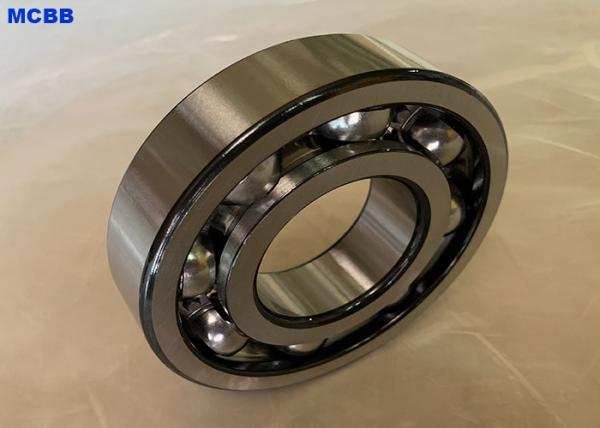

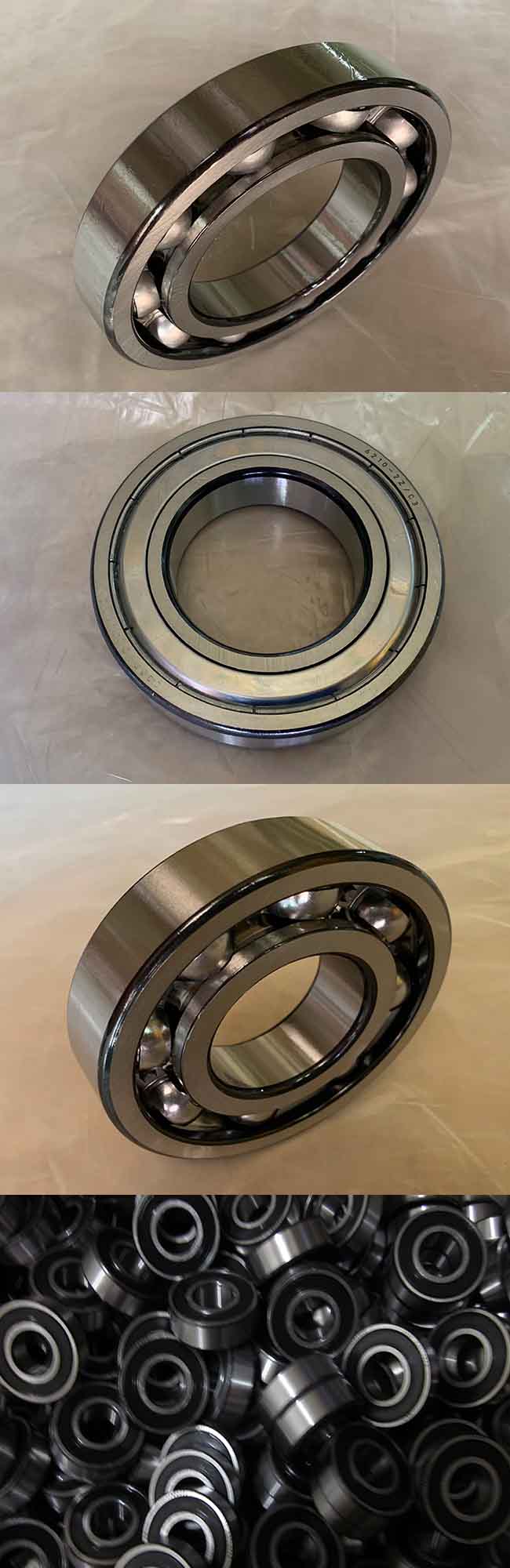

Chrome Steel Deep Groove Ball Bearings 606 ZZ Miniature Deep Groove Bearing
Description,
1. Bearings on the market are generally divided into two materials, high-quality standard bearing steel and standard high-carbon steel.
2. Standard bearing steel is a nationally recognized bearing
material application standard (Gcr2005). The hardness standard
range is HDC60-62 degrees. Bearing steel has high and uniform
hardness, good wear resistance, and high elastic limit. It is used
as a bearing. Good material. Steel mills have strict requirements
on the uniformity of the chemical composition of bearing steel, the
content and distribution of non-metallic inclusions, and the
distribution of carbides, which are strict steel types required in
all steel production.
3. High-carbon steel material, with a certain proportion of carbon
components, after quenching (that is, steel heat treatment),
although the hardness is in the range of 50-55 degrees, less than
standard bearing steel, but the material is more tough than
standard bearing steel, and important The cost is effectively
reduced, and the resulting bearing is more cost-effective. It is
widely used in areas where Mohs hardness is not high.
nsk deep groove ball bearing, Specification,
Bearing Model | 6210, 6201-2RS, 6210-ZZ |
d | 50mm |
D | 90mm |
B | 20mm |
D1 | 77.9mm |
Da max | 83mm |
d1 | 62mm |
da min | 57mm |
ra max | 1mm |
r min | 1,1mm |
m | 0.446kg |
Cr | 39000 N Basic dynamic load rating, radial |
C0r | 24200 N Basic static load rating, radial |
nG | 18000 1/min Limit speed |
nB | 8200 1/min Reference speed |
Cur | 1420 N Fatigue limit load, radial |
Deep groove ball bearing sizes, Features,
1. Bearing 6210 can also be used: leisure food processing equipment, plastic sheet equipment, boiling dryers, food packaging machinery, pharmaceutical packaging machinery, electric pumps, fruit and vegetable processing equipment, plastic drawing machines, dairy machinery, biscuit machinery, plastic knitting machines, hot air stoves, frozen food processing equipment, food sterilization equipment, plastic machine accessories Fresh-keeping refrigerating equipment, gearbox, rice noodles, mechanical compression molding machine, horizontal dryer.
2. Deep groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
3. The bearing ring grooves are circulararcs made slightly larger than the radius of the ball. The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders).
4. Deep Groove baal bearings can sustain radial,axial ,or composite loads and beacuse of simple design,this bearing type can be produced to provide both high-running accuracy and high-speed operation.
6200 series with the other more bearings model,
Bearing No. | Seal | ID | OD | R |
6209 | open | 45 | 85 | 19 |
6209-2RS | sealed | 45 | 85 | 19 |
6309 | open | 45 | 85 | 19 |
6309-2rs | sealed | 45 | 100 | 25 |
6010 | open | 45 | 100 | 25 |
6010-2RS | sealed | 45 | 100 | 25 |
6210 | open | 50 | 80 | 16 |
6210-2RS | sealed | 50 | 80 | 16 |
6310 | shielded | 50 | 80 | 16 |
6310-2RS | sealed | 50 | 90 | 20 |
6310ZZ | shielded | 50 | 110 | 27 |
6011 | open | 50 | 110 | 20 |
6011-2RS | sealed | 50 | 110 | 27 |
6011ZZ | shielded | 50 | 90 | 27 |
6211 | open | 55 | 90 | 27 |
6211-2RS | sealed | 55 | 90 | 18 |
6211ZZ | shielded | 55 | 100 | 18 |
6311 | open | 55 | 100 | 18 |
6311-2RS | sealed | 55 | 100 | 21 |
Welcome to be our VIP customer. Action now to contact us for price list.
![]() |
