    Thicken 62204 2rs Rs Deep Groove Ball Bearings Low Noise Widen Type

    Ask Lasest Price
    Brand Name : MCBB/ Customization/ Any famous brand
    Model Number : 6302 2RS
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Payment online by credit card, Dirct RMB from abroad
    Supply Ability : 30,0000pcs/month
    Delivery Time : Within 7days after confirmation
    • Product Details
    • Company Profile

    Thicken 62204 2rs Rs Deep Groove Ball Bearings Low Noise Widen Type

    Thicken 62204 2rs Rs Bearing Deep Groove Ball Low Noise Widen type

    Bearing deep groove ball, Description,


    1. Supply thickened 62200 bearing 62201 62202 62203 62204 62205 62206-2RS ZZ.

    2. The inner and outer raceway of the deep groove ball bearing is in the shape of an arc, and the groove radius of the deep groove ball chain bearing is slightly larger than the radius of the ball. Mainly used to bear the radial load, but also can withstand a certain axial load.

    Deep groove ball bearing axial load, Specification,

    d20mm
    D47mm
    B18mm
    D241mm
    Da max41.4mm
    d128.8mm
    da min25.6mm
    ra max1mm
    r min1mm
    m0.139kg
    Cr13600N
    C0r6600N
    nG10000 1/min
    nB0 1/min
    Cur385N


    v groove sealed ball bearings, Features,


    When the radial clearance of the bearing increases, it has the function of angular contact ball bearing, which can bear large axial load and is suitable for high-speed rotation. The bearing can still work normally when the shell hole and shaft are tilted relative to 8 '~ 16', but its service life is affected. In the case of high speed and not suitable for the use of thrust ball bearings can be used to bear the pure axial load.

    More model bearings,

    Bearing No.Boundary dimensions (mm)Load rating(N)Limiting speeds(rpm)
    opendDBB1RmixCrCorGreaseOil
    62200103014140.3510023902500030000
    W62003014.314.30.351002390
    623003517170.6820035002300027000
    W63003519190.676503480
    63001122812120.351002390260003000
    622013214140.6610027502200026000
    W62013215.915.90.668203060
    623013717171970042002000024000
    W6301371919197205080
    63002153213130.3560028402200026000
    622023514140.6775036001900023000
    W62023515.915.90.676403720
    6230242171711140054501700021000
    W63024219191115005420
    63003173514140.3680033502000024000
    622034016160.6960046001800021000
    W62034017.517.50.695704790
    6230347191911350065501600019000
    W63034722.222.2113506580
    63004204216160.3940050501800021000
    6220447181811280066501600018000
    W62044720.620.61128406650
    623045221211.11590079001400017000
    W63045222.222.21.1158007880
    63005254716160.61010055801500018000
    6220552181811400078501300015000
    W62055220.620.61140207880
    623056224241.121200109001200014000
    W63056225.425.41.12220011500
    630063055191911320083001300015000
    62206622020119500113001100013000
    W62066223.823.811946011460
    623067227271.126700150001000012000
    W63067230.230.21.12700015200
    6300735621420116000103001200014000
    622077223231.12570015300980011000
    W62077227271.12567015370
    623078031311.53350019100880010000
    W63078034.934.91.53320019200
    63008406821210.316800115001000012000
    622088023231.12910017800870010000
    W62088030.230.21.12952018140
    623089033331.5405002400078009200
    W63099036.536.51.54057024010
    63009457523231208001460056006600
    622098523231.1325002040078009200
    W62098530.230.21.13167020680
    6230910036361.5530003200070008200
    W630910039.739.71.55286031830
    63010508023231216001600050006000
    622109023231.1350002320071008300
    W62109030.230.21.13507023180
    6231011040402620003850064007500
    W631011044.444.426186037940

    Why choose mcbb bearing,

    Supporting payment by credit card online. welcome small order.

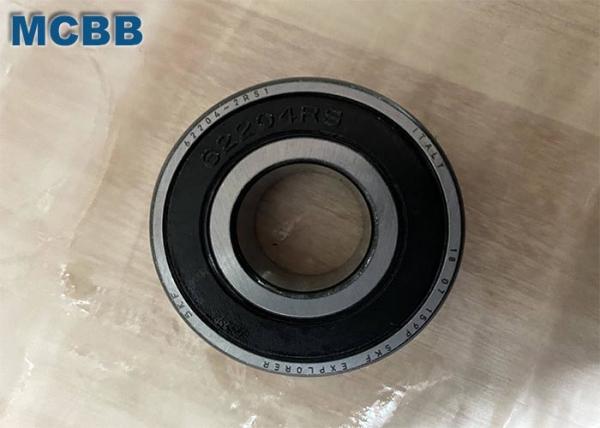

    Product picture show,


    Application,


    Bearing 62204-2rsr can also be used for: chemical fiber mechanical weaving machinery aluminum-plastic packaging machine water spraying device roller welding machine textile equipment and equipment variable speed machine cooler copper smelting equipment manual welding machine smelting complete equipment impeller pump material resistance and furnace screw chiller electric welding machine coking equipment hardware heater steelmaking equipment resistance welding machine

    If you need, welcome contact us for its price list.
