Brand Name : | MCBB/ Customization/ Any famous brand |
Model Number : | 61820 ZZ |
Certification : | CE |
Price : | negotiation |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Payment online by credit card, Dirct RMB from abroad |
Supply Ability : | 30,0000pcs/month |
Delivery Time : | Within 7days after confirmation |

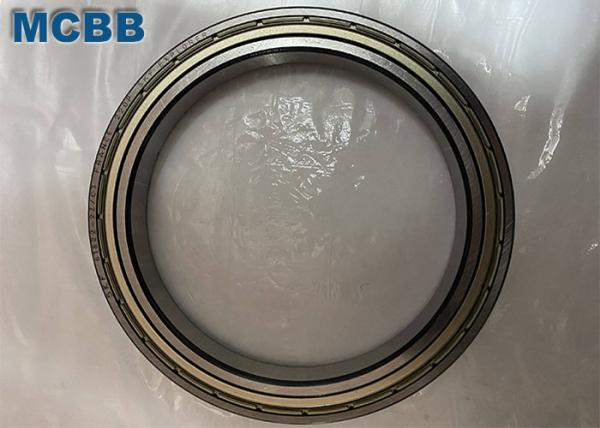

61820 ZZC3 Sealed Ball Bearings High Speed Precision Thin-Wall
Bearing
Sealed ball bearing, Description,
Machine tool bearing 61820 61821 61822 61824 ZZ RS bearing,
construction machinery and motor 61822 high-speed precision
thin-wall bearing.
Bearing deep groove ball, Specification,
d | 100mm |
D | 125mm |
B | 13mm |
D2 | 119.2mm |
Da max | 120.4mm |
d1 | 108.2mm |
da min | 104.6mm |
ra max | 1mm |
rmin | 1mm |
m | 0.31kg |
Cr | 21300N |
C0r | 22100 N |
nG | 5000 1/min |
nB | 4150 1/min |
Cur | 1010 N |
![]() ![]() ![]() |
Single row deep groove ball bearing application, Features,
When subjected to pure radial load, each ball under load has two
points of contact with the two communications, while under pure
axial load, only one point of contact can greatly improve the
bearing speed.
More model bearings,
More bearing model for choosing,
Bearing NO. | Old NO. | ID | OD | B | Cr | Cor | Max Speed | Max Speed | Mass |
(Grease) | (Oil) | ||||||||
(mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | ||
61801 | 1000801 | 12 | 21 | 5 | 1.9 | 1 | 24000 | 32000 | 0.006 |
61802 | 1000802 | 15 | 24 | 5 | 2.1 | 1.3 | 22000 | 30000 | 0.007 |
61803 | 1000802 | 17 | 26 | 5 | 2.2 | 1.5 | 20000 | 28000 | 0.008 |
61804 | 1000804 | 20 | 32 | 7 | 3.5 | 2.2 | 18000 | 24000 | 0.018 |
61805 | 1000805 | 25 | 37 | 7 | 4.3 | 2.9 | 16000 | 20000 | 0.022 |
61806 | 1000806 | 30 | 42 | 7 | 4.55 | 3.4 | 15000 | 18000 | 0.026 |
61807 | 1000807 | 35 | 47 | 7 | 4.75 | 3.85 | 13000 | 19000 | 0.03 |
61808 | 1000808 | 40 | 52 | 7 | 4.95 | 4.2 | 12000 | 14000 | 0.033 |
61809 | 1000809 | 45 | 58 | 7 | 6.4 | 5.6 | 9000 | 12000 | 0.03 |
61810 | 1000810 | 50 | 65 | 7 | 6.6 | 6.1 | 8500 | 10000 | 0.043 |
61811 | 1000811 | 55 | 72 | 9 | 9.1 | 8.4 | 8000 | 9500 | 0.07 |
61812 | 1000812 | 60 | 78 | 10 | 9.1 | 8.7 | 7000 | 8500 | 0.093 |
61813 | 1000813 | 65 | 85 | 10 | 11.9 | 11.5 | 6700 | 8000 | 0.13 |
61814 | 1000814 | 70 | 90 | 10 | 12.1 | 11.9 | 6300 | 7500 | 0.138 |
61815 | 1000815 | 75 | 95 | 10 | 12.5 | 12.8 | 6000 | 7000 | 0.147 |
61816 | 1000816 | 80 | 100 | 10 | 12.7 | 13.3 | 5600 | 6700 | 0.155 |
61817 | 1000817 | 85 | 110 | 13 | 19.2 | 19.8 | 5000 | 6300 | 0.245 |
61818 | 1000818 | 90 | 115 | 13 | 19.5 | 20.5 | 4800 | 6000 | 0.258 |
61819 | 1000819 | 95 | 120 | 13 | 19.8 | 21.3 | 4500 | 5600 | 0.27 |
61820 | 1000820 | 100 | 125 | 13 | 20.1 | 22 | 4300 | 5300 | 0.28 |
61821 | 1000821 | 105 | 130 | 13 | 20.3 | 22.7 | 4000 | 5000 | 0.3 |
61822 | 1000822 | 110 | 140 | 16 | 28.1 | 30.7 | 3800 | 5000 | 0.5 |
61800 | 1000800 | 10 | 19 | 5 | 1.8 | 0.93 | 28000 | 36000 | 0.005 |
61824 | 1000824 | 120 | 150 | 16 | 28.9 | 32.9 | 3400 | 4300 | 0.54 |
61826 | 1000826 | 130 | 165 | 18 | 37.9 | 42.9 | 3200 | 4000 | 0.736 |
61828 | 1000828 | 140 | 175 | 18 | 38.2 | 44.3 | 3000 | 3800 | 0.784 |
61830 | 1000830 | 150 | 190 | 20 | 49.1 | 57.1 | 2800 | 3400 | 1.114 |
61832 | 1000832 | 160 | 200 | 20 | 49.6 | 59.1 | 2600 | 3200 | 1.176 |
61834 | 1000834 | 170 | 215 | 22 | 61.5 | 73.3 | 2200 | 3000 | 1.545 |
Why choose mcbb bearing,
Supporting sample purchase. and 7days refund.
Product picture show,
Application,
Bearing 6182-2z-y can also be used for: name card printing machine
pipeline pump drilling equipment hydraulic chuck cross-flow cooling
tower traction, rectifying equipment chip remover gravure printing
machine hoist mass transfer equipment dynamic pressure guide rail
conveyor Roland printing machine blower curve guide rail
electroplating refrigerator mine construction equipment manual pump
flexo printing machine mining element analyzer.
If you need, welcome contact us for its price list.
![]() |
