    C3 Low Noise ABEC -7 6326ZZC3 Deep Groove Bearing Axial Load For AC Motor

    Ask Lasest Price
    Brand Name : MCBB/ Customization/ Any famous brand
    Model Number : 6326ZZC3
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Payment online by credit card, Dirct RMB from abroad
    Supply Ability : 30,0000pcs/month
    Delivery Time : Within 7days after confirmation
    • Product Details
    • Company Profile

    C3 Low Noise ABEC -7 6326ZZC3 Deep Groove Bearing Axial Load For AC Motor

    C3 Low Noise ABEC-7 6326ZZC3 Deep Groove Ball Bearing Axial Load For AC Motor


    Deep groove ball bearing puller, Description,


    1. Deep groove ball bearing is an inseparable type bearing, and its inner and outer raceway is a deep groove, mainly used to bear radial load.

    Electric insulated bearing 6326M special for wind generator.


    2. If the ball bearing is used in the motor needs to use the Z2V2 grade, the high standard of the bearing in the process of high-speed operation and overload rotation can reduce the friction pro high temperature resistance, extended the life of the bearing and improve the speed of operation.


    Axial deep groove ball bearing, Specification,


    Bearing Model6326-2ZZC3
    d130mm
    D280mm
    B58mm
    D1231.2mm
    Da max263mm
    d1178.9mm
    da min147mm
    ra max3mm
    r min4mm
    m18.3kg in weight
    Cr244000N, basic rated dynamic load, radial
    C0r214000N, basic rated static load, radial
    nG5600 1/min, limit speed
    nB3500 1/min, reference speed
    Cur9800N, fatigue limit load, radial

    Deep groove ball bearing axial load, Features,


    1. Lower noise and vibration levels.


    2. Significantly increased working life.


    3. Higher dynamic load carrying capacity.


    More bearings model of 62200 series,


    Why choose mcbb bearing,


    We support direct RMB from abroad.


    6300 series with more bearing model for reference,

    Bearing
    NO.
    Old NO.IDODBCrCorMax SpeedMax SpeedMass
    (Grease)(Oil)
    (mm)(mm)(mm)(kN)(kN)(r/min)(r/min)(kg)
    63003001035117.653.4818000240000.053
    63013011237129.725.0817000220000.06
    630230215421311.55.4216000200000.082
    630330317471413.56.5815000180000.115
    630430420521515.87.8813000160000.142
    630530525621720.611.311000130000.232
    630630630721926.7156600120000.346
    630730735802133.419.38500100000.457
    630830840902340.824700085000.639
    6309309451002552.831.8630075000.837
    6310310501102761.838600070001.082
    6311311551202971.544.8560067001.367
    6312312601303181.851.8500060001.71
    6313313651403393.860.5450053002.1
    6314314701503510568430050002.55
    6315315751603711376.8400048003.05
    6316316801703912386.5380045003.61
    6317317851804113296.5360043004.284
    63183189019043145108340040004.97
    63193199520045157122320038005.74
    632032010021547173140280036007.09
    632132110522549184153260032008.05
    632232211024050205178240030009.53
    6324324120260552282082200280012.2
    6326326130280582532422000260014.77
    6328328140300622752721900240018.33
    6330330150320652882951700220021.87
    6332332160340683133401600200026.43
    6334334170360723353781500190031.14
    6336336180380754095341400180035.23
    6338338190400784585761300160040.53

    Application,


    Bearing 6326-m can also be used for: blister machine universal testing machine cooler steel bar cutting machine abrasion testing machine plastic plate equipment change-speed machine impact testing machine tower crane screw chiller vibration testing machine hardware plastic wire drawing machine pressure testing machine heater impeller pump crawler excavator balancing machine plastic weaving machine strength testing machine.

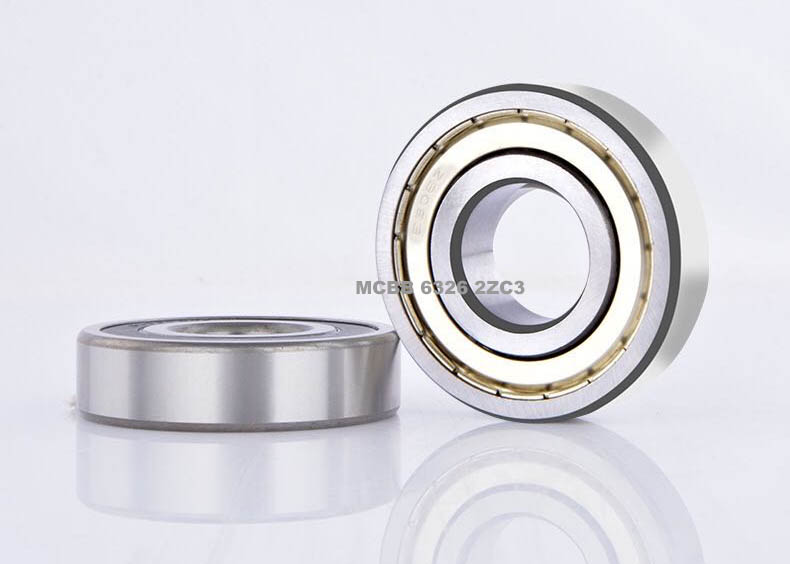

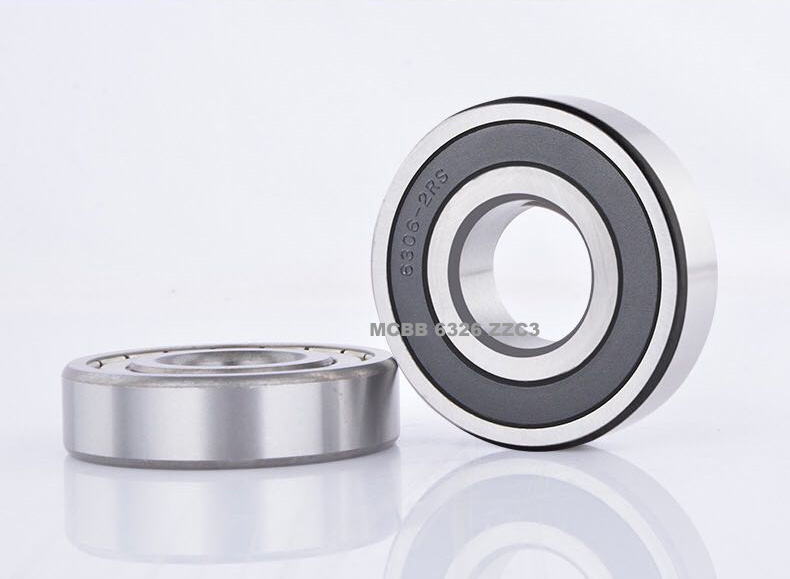

    Product pictures show,

    Quality C3 Low Noise ABEC -7 6326ZZC3 Deep Groove Bearing Axial Load For AC Motor for sale
