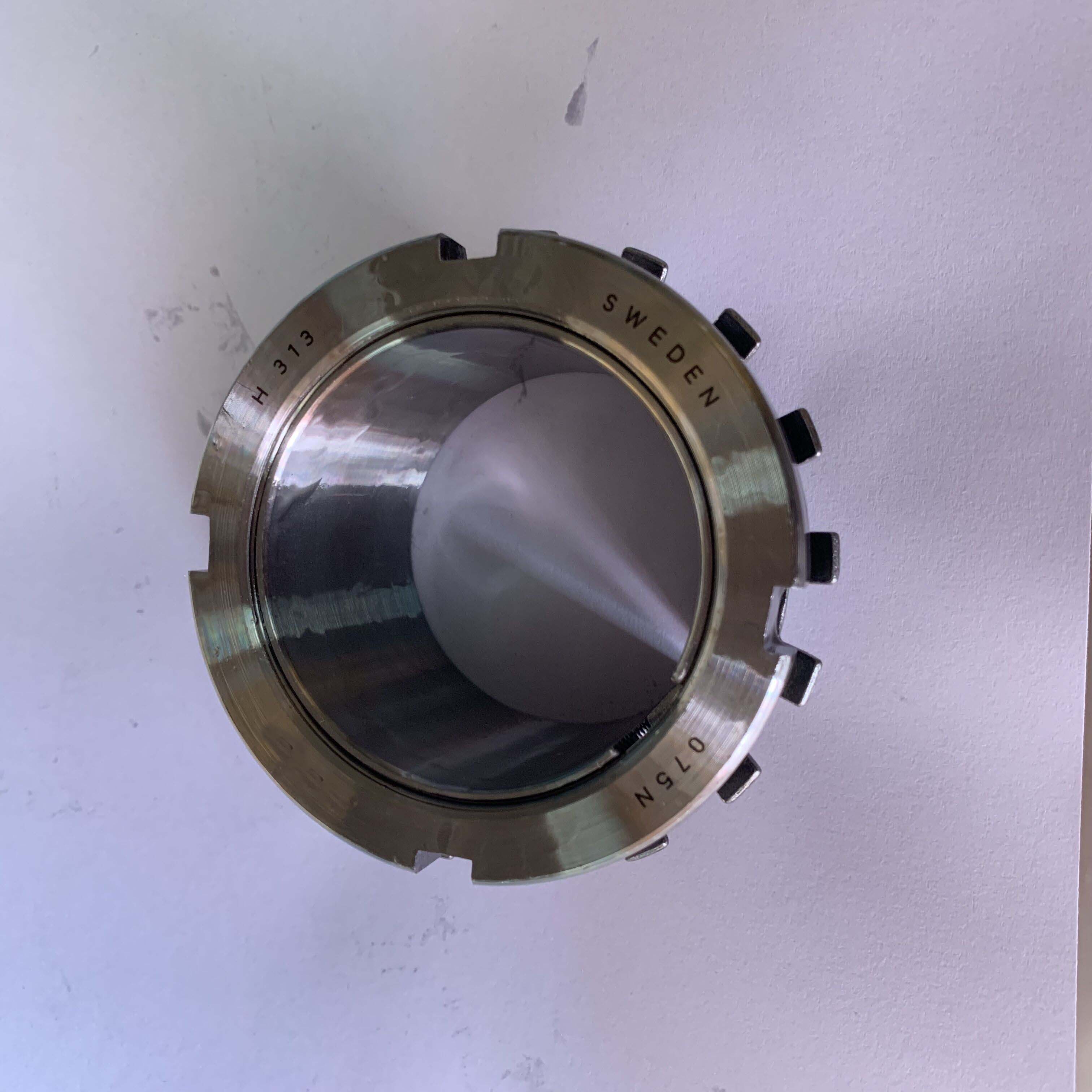

    Spherical Adapter Sleeve Bearing H313 Tapered Adapter Sleeve ABEC-7

    Ask Lasest Price
    Brand Name : MCBB/ Per Customer requirement
    Model Number : H313
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram, Payment online, Paypal
    Supply Ability : 10,000PCS/Week
    Delivery Time : Within 7days after confirmation
    • Product Details
    • Company Profile

    Spherical Adapter Sleeve Bearing H313 Tapered Adapter Sleeve ABEC-7

    Spherical Adapter Sleeve Bearing H313 Tapered Adapter Sleeve ABEC-7


    H313 Spherical Adapter Sleeve Bearing Features,


    1. It has good thermal conductivity, easy to install and disassemble, and greatly improves the utility of seals. Sliding bearing seat is composed of upper cover, base, split bearing bush (aluminum-bronze), installation bolt, mainly bearing radial load. Easy to use, no need to install bearings.


    2. The part of the inner surface of the bearing bush that does not bear the load has oil groove, and the lubricating oil flows into the clearance through the oil inlet hole and the mail groove. It is mainly used in metallurgy and conveying equipment and other industrial fields.


    3. In use, there is no need to design bearing box, so the size is small, the structure is simple, easy to use.


    4. Bearing block for the overall structure, bearing capacity, good rigidity, interchangeability characteristics.


    5. With automatic adjustment function. Double seal, mainly used in agricultural machinery, construction equipment, transportation systems, textile machinery and other food, beverage processing equipment.


    Parameter of Adapter Sleev Bearings,


    Adapter sleeve use for tappered bore spherical bearings fixed to the shaft or without, it is structure is very simple, but very reliable and easy to


    maintain bearings,


    Adapter

    Dimenision(mm)



    Sleeve

    H

    d

    d2

    B1

    B2

    G

    Weight(kg)

    Sleeve

    Locknut

    H304

    17

    20

    32

    28

    7

    M20X1

    0.045

    A304

    KM4

    H305

    20

    25

    38

    29

    8

    M25X1.5

    0.075

    A305

    KM5

    H306

    25

    30

    45

    31

    8

    M30X1.5

    0.11

    A306

    KM6

    H307

    30

    35

    52

    35

    9

    M35X1.5

    0.14

    A307

    KM7

    H308

    35

    40

    58

    36

    10

    M40X1.5

    0.19

    A308

    KM8

    H309

    40

    45

    65

    39

    11

    M45X1.5

    0.25

    A309

    KM9

    H310

    45

    50

    70

    42

    12

    M50X1.5

    0.3

    A310

    KM10

    H311

    50

    55

    75

    45

    12

    M55X2

    0.35

    A311

    KM11

    H312

    55

    60

    80

    47

    13

    M60X2

    0.39

    A312

    KM12

    H313

    60

    65

    85

    50

    14

    M65X2

    0.46

    A313

    KM13

    H314

    60

    70

    92

    52

    14

    M70X2

    0.72

    A314

    KM14

    H315

    65

    75

    98

    55

    15

    M75X2

    0.83

    A315

    KM15

    H316

    70

    80

    105

    59

    17

    M80X2

    1

    A316

    KM16

    H317

    75

    85

    110

    63

    18

    M85X2

    1.2

    A317

    KM17

    H318

    80

    90

    120

    65

    18

    M90X2

    1.35

    A318

    KM18

    H319

    85

    95

    125

    68

    19

    M95X2

    1.55

    A319

    KM19

    H320

    90

    100

    130

    71

    20

    M100X2

    1.7

    A320

    KM20

    H321

    95

    105

    140

    74

    20

    M105X2

    1.95

    A312

    MB21

    H322

    100

    110

    145

    77

    21

    M110x2

    A322

    A322

    MB22











    About Service,


    1. Services: supporting OEM custominzed services.


    2. Application: Mining, Metallurgy, Agriculture, Chemical and the other transmission application.


    3. Precision Rating: P0 P5 P6 P2( ABEC-1 ABEC-3 ABEC-5 ABEC-7 and ABEC-9).


    4. Because there are so many model of adapter sleeve bearing can not details description in here. If you need, welcome contact us. Trusting you will like our quality and price. How to get a quotation in fast. Just keep the post through the following contact information, 24hours in serve.


    Show Pictures,



    Our Package,


    1. Per customer's requirement.


    2. Barreled package+ outer hardness outer carton+ pallets.



    Why choose us?


    1. Because we never say, our quality is the best one or our price is the cheapest one, but must be a spcial one bearing supplier for you. Welcome


    2. Contact us for price list.
