    CF3 Ball Joint Rod End Bearing

    Ask Lasest Price
    Brand Name : MCBB/ Customization/ Any famous brand
    Model Number : CF3
    Certification : ISO91000:2008
    Price : negotiation
    Payment Terms : L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB
    Supply Ability : 500,000pcs/week
    Delivery Time : Within 7days after confirmation
    • Product Details
    • Company Profile

    CF3 Ball Joint Rod End Bearing

    CF3 Chromoly Female Thread Ball Joint Rod End Bearing For ATV/UTV/GO Karting


    Rod end joint bearings features,


    1. Rod end joint bearings are mainly composed of an inner ring with an outer spherical surface and an outer ring with an inner spherical surface, which can withstand larger loads.


    2. According to the different types and structures of rod end joint bearings, it can withstand radial load, axial self-load or the combined load of radial and axial 2113.


    3. Rod end joint bearings are generally used for low-speed swing movements, and can also be tilted within a certain angle range. According to its different types and structures, 5261 can withstand radial load, axial load or radial, 4102 axial co-existing combined load.


    More Models,


    Bearing No.

    Dimensions(mm/inches)

    Ball
    dia


    mis.
    angle

    Load
    ratings
    (KN)

    weight
    ≈ kg

    d+0.038
    -0.012

    B

    C1

    d2

    d3
    UNF-2B

    h1

    L3

    (L4)

    d4

    sw

    CF3

    4.826

    7.92

    5.94

    15.88

    10-32

    26.97

    11.11

    34.91

    10.31

    7.92

    11.11

    13

    7.6

    0.182

    CF3

    0.1900

    0.312

    0.234

    0.625

    10-32

    1.062

    0.437

    1.375

    0.406

    0.312

    0.437

    13

    7.6

    0.182

    CF4

    6.35

    9.53

    6.35

    19.05

    1/4-28

    33.32

    14.28

    42.85

    11.89

    9.52

    12.7

    18

    9.9

    0.226

    CF4

    0.2500

    0.375

    0.250

    0.750

    1/4-28

    1.312

    0.562

    1.687

    0.468

    0.375

    0.500

    18

    9.9

    0.226

    CF5

    7.938

    11.1

    7.92

    22.23

    5/16-24

    34.92

    15.88

    46.03

    12.7

    11.1

    15.88

    14

    12.7

    0.362

    CF5

    0.3125

    0.437

    0.312

    0.875

    5/16-24

    1.375

    0.625

    1.812

    0.500

    0.437

    0.625

    14

    12.7

    0.362

    CF6

    9.525

    12.7

    9.11

    25.4

    3/8-24

    41.28

    19.05

    53.98

    17.45

    14.27

    18.26

    14

    17

    0.059

    CF6

    0.3750

    0.500

    0.359

    1.000

    3/8-24

    1.625

    0.750

    2.125

    0.687

    0.562

    0.719

    14

    17

    0.059

    CF7

    11.112

    14.27

    10.31

    28.58

    7/16-20

    46.02

    22.22

    60.3

    19.05

    15.88

    20.62

    13

    21

    0.081

    CF7

    0.4375

    0.562

    0.406

    1.125

    7/16-20

    1.812

    0.875

    2.375

    0.750

    0.625

    0.812

    13

    21

    0.081

    CF8

    12.7

    15.88

    11.5

    33.33

    1/2-20

    53.98

    25.4

    70.64

    22.22

    19.05

    23.8

    12

    27.5

    0.131

    CF8

    0.5000

    0.625

    0.453

    1.312

    1/2-20

    2.125

    1.000

    2.781

    0.875

    0.750

    0.937

    12

    27.5

    0.131

    CF10

    15.875

    19.05

    12.29

    38.1

    5/8-18

    63.5

    31.75

    82.55

    25.4

    22.22

    28.58

    16

    29.9

    0.195

    CF10

    0.6250

    0.750

    0.484

    1.500

    5/8-18

    2.5

    1.250

    3.250

    1.000

    0.875

    1.125

    16

    29.9

    0.195

    CF12

    19.05

    22.23

    15.06

    44.45

    3/4-16

    73.02

    38.1

    95.25

    28.58

    25.4

    33.33

    14

    44.2

    0.294

    CF12

    0.7500

    0.875

    0.593

    1.750

    3/4-16

    2.875

    1.500

    3.75

    1.125

    1.000

    1.312

    14

    44.2

    0.294

    CF16

    25.4

    34.93

    25.4

    69.85

    5/4-12

    104.78

    53.98

    139.7

    41.28

    38.1

    47.62

    14

    129.1

    0.925

    CF16

    1.0000

    1.375

    1.000

    2.750

    5/4-12

    4.125

    2.125

    5.5

    1.625

    1.500

    1.875

    14

    129.1

    0.925

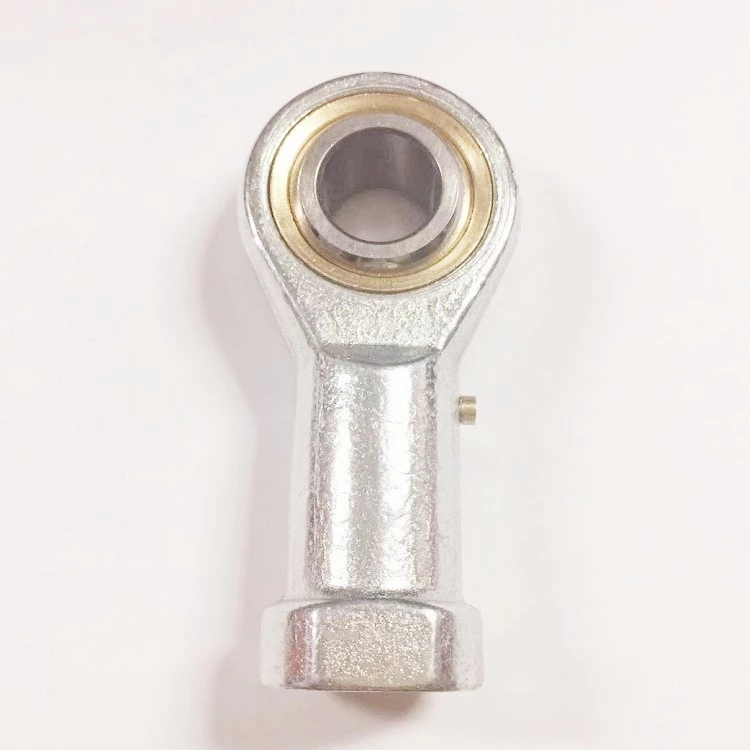

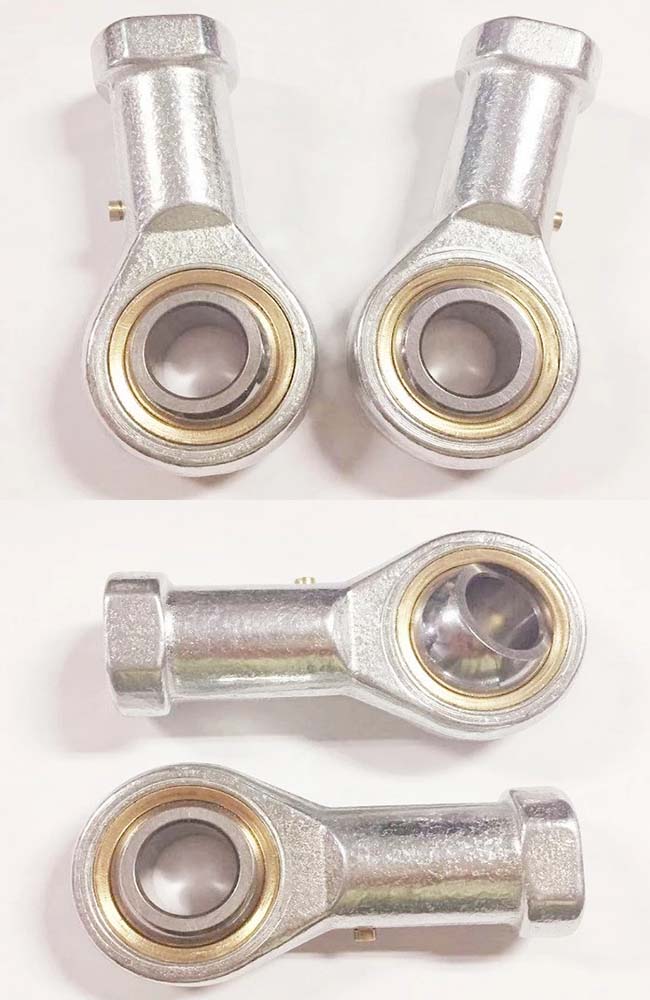

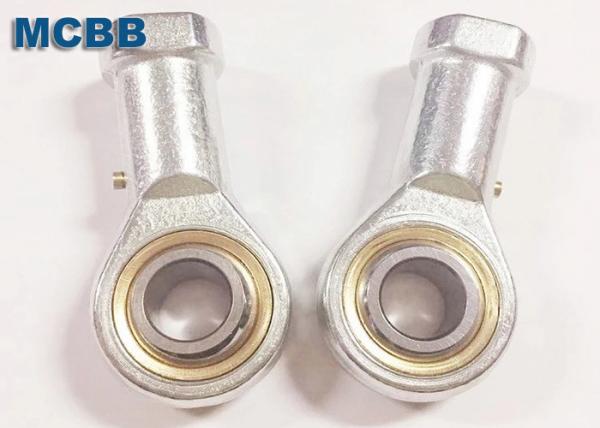

    Show Picture,



    Action Contact Us for Price List, right now!!!


    If you need this type ball join rod end ball bearings, welcome contact us for price list.
