Brand Name : | MCBB/ Customization/ Any famous brand |
Model Number : | NKI10/20 |
Certification : | ISO9001:2008 |
Price : | negotiation |
Payment Terms : | L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB |
Supply Ability : | 30,0000pcs/month |
Delivery Time : | Within 7days after confirmation |

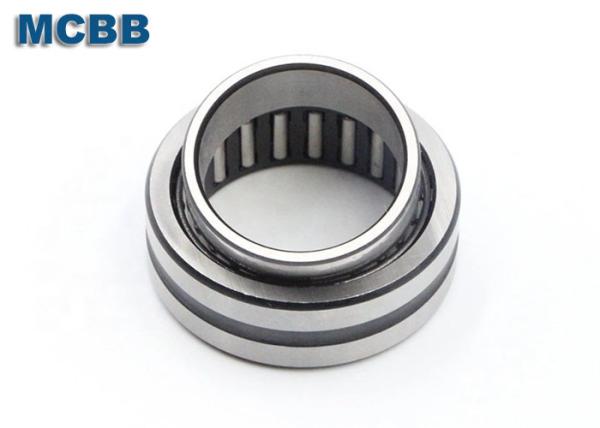

Miniature Needle Roller Bearings NKI10/20 size 10*22*20mm Bearing Steel
Product Feature,
1. Needle bearings are roller bearings with rollers that have high length-to diameter ratios.
2. Needle bearings are used in farm and construction equipment, automotive transmissions, small gasoline engines, gear pumps, small appliance and tool motors, alternators, and aircraft controls.
3. Needle bearings are usually lubricated with grease, but oil or oil-mist lubrication is preferred for heavy-duty or high-speed applications. Many light-duty needle bearings never require relubrication, but high loads or speeds demand it.
Product Application,
Widely used for industries,textile machine.
Product name | Miniature Needle Roller Bearings NKI10/20 size 10*22*20mm Bearing Steel |
Material | Chrome steel |
Roller Dia(mm) | 10mm |
Stud Dia(mm) | 22mm |
Stud Length(mm) | 20mm |
Weight | 0.18kg |
Service | OEM Accept |
Package | Netural package or according to requirememt |
Sample time | 5--7 days |
Production time | It depends on the quantity |
More Part No,
Shaft | Bearing Designation | Mass | BoundaryDimensions | BasicLoadRating | Limiting Speed | ||||
Current Code | Original Code | Fw | D | C | Dynamic | Static | Oil | ||
mm | g | mm | N | rpm |
Shaft | Bearing Designation | Mass | BoundaryDimensions | BasicLoadRating | Limiting Speed | ||||
Current Code | Original Code | Fw | D | C | Dynamic | Static | Oil | ||
mm | g | mm | N | rpm |
5 | NK5/10TN | 2.9 | 5 | 10 | 10 | 2100 | 1400 | 36780 | |
NK05/08 | 5 | 10 | 8 | ||||||
NK05/10TN-OH | 5 | 10 | 12 | 2350 | 1920 | 39000 | |||
NK05/12TN | 3.7 | 5 | 10 | 12 | 3000 | 2650 | 39000 | ||
6 | NK06/10 | 6 | 12 | 10 | 2600 | 2200 | 37000 | ||
NK06/10TN | 6 | 12 | 10 | 2600 | 2200 | 37000 | |||
NK06/12TN | 5.7 | 6 | 12 | 12 | 3350 | 3150 | 37000 | ||
RNA6X13X8TN | 6 | 13 | 8 | ||||||
7 | NK07/10 | 6.9 | 7 | 14 | 10 | 2850 | 2650 | 34000 | |
NK07/12 | 8.2 | 7 | 14 | 12 | 3650 | 3600 | 34000 | ||
7.8 | RNA7.8169 | 7.8 | 16 | 9 | |||||
8 | NK8/12TN | 8.3 | 8 | 15 | 12 | 3950 | 4100 | 32000 | |
NK08/12 | 8.7 | 8 | 15 | 12 | 3950 | 4100 | 32000 | ||
NK08/16 | 12 | 8 | 15 | 16 | 5100 | 5800 | 32000 | ||
NK08/16TN | 8 | 15 | 16 | 5100 | 5800 | 32000 | |||
RNA8X19X9 | 8 | 19 | 9 | ||||||
RN8X14X8 | 8 | 14 | 8 | ||||||
RNA496 | 8 | 15 | 10 | ||||||
RNA8X15X10TN | 8 | 15 | 10 | ||||||
9 | NK09/12 | 10.3 | 9 | 16 | 12 | ||||
10 | NK10/12TN | 462409K | 10 | 10 | 17 | 12 | 4750 | 5300 | 29000 |
5624097 | 16.6 | 10 | 17 | 15 | 4860 | 7100 | 29000 | ||
NK10/10 | 10 | 17 | 10 | ||||||
NK10/12 | 10 | 17 | 12 | ||||||
NK10/16 | 10 | 17 | 16 | 6200 | 7800 | 29000 | |||
NK10/16TN | 10 | 17 | 16 | 6200 | 7800 | 29000 | |||
NKS10 | 10 | 19 | 13 | 5800 | 6000 | 29000 | |||
12 | NK12/12TN | 644097 | 11.8 | 12 | 19 | 12 | 6000 | 6400 | 27000 |
5624098 | 15.4 | 12 | 19 | 15 | 6400 | 7100 | 27000 | ||
NK12/16 | 16.8 | 12 | 19 | 16 | 8200 | 9800 | 27000 | ||
14 | NK14/16 | 4624900K | 20.8 | 14 | 22 | 16 | 10100 | 11500 | 25000 |
NKS14 | 27 | 14 | 25 | 16 | 1400 | 13800 | 24000 | ||
RNA4900 | 4624900 | 24.4 | 14 | 22 | 13 | 8500 | 9000 | 25000 | |
RNA6900 | 6634900 | 29.1 | 14 | 22 | 22 | 12800 | 15600 | 25000 | |
NK14/12 | 14 | 22 | 12 | ||||||
NK14/20 | 14 | 22 | 20 | 12800 | 15600 | 25000 |
Why choose us,
NO MOQ, 1pcs. Welcome small order. Supporting 7days.

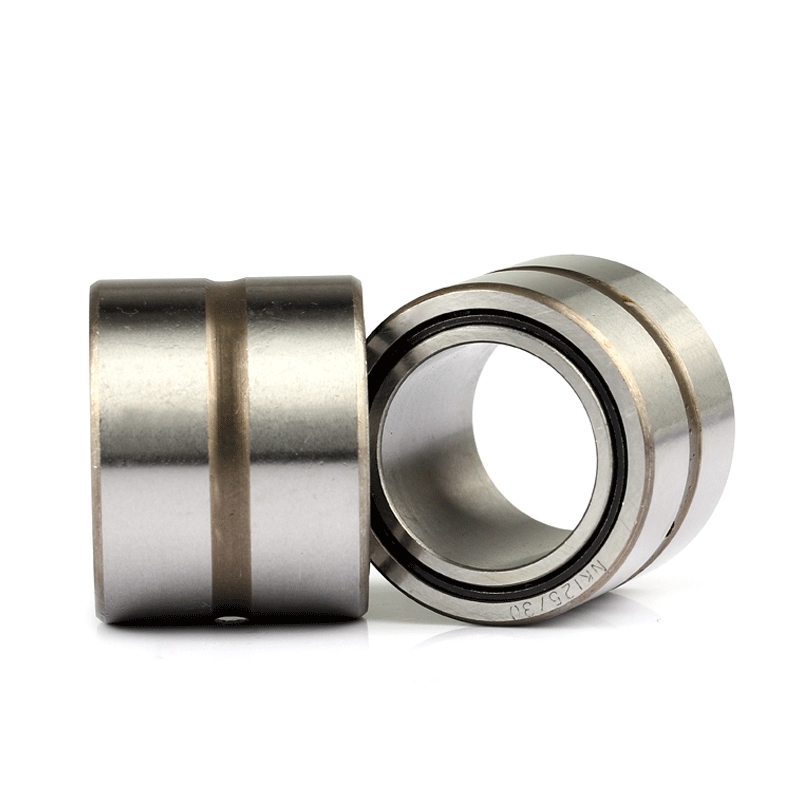

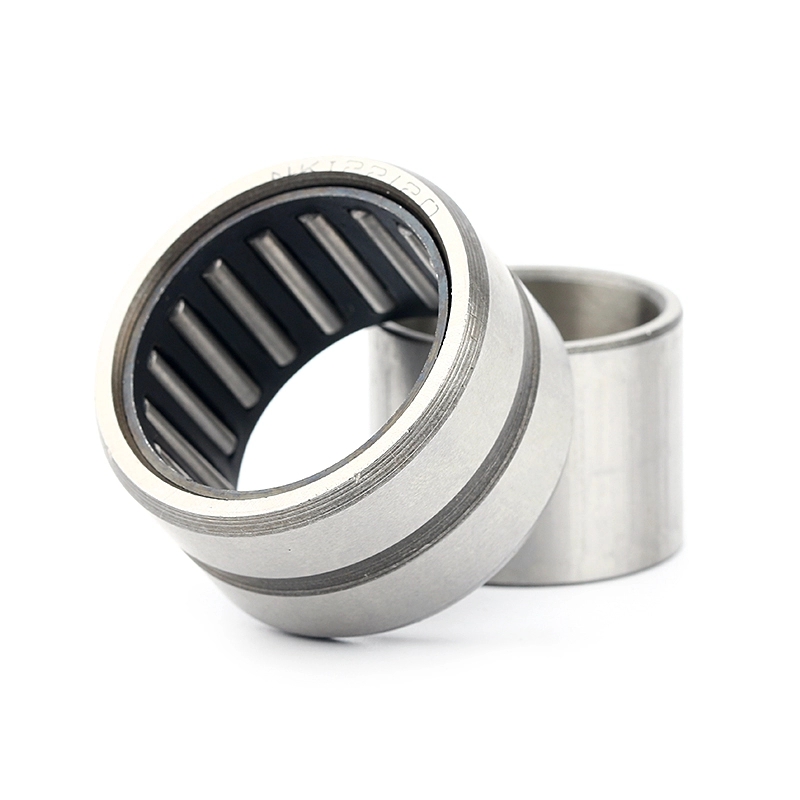

Product picture show,
If you need the price, welcome contact us for the price list.
![]() |
