FC30 Drawn Cup Needle Roller Bearings Clutch One Way Bearing High Temperature

    Buy cheap FC30 Drawn Cup Needle Roller Bearings Clutch One Way Bearing High Temperature from wholesalers

    Buy cheap FC30 Drawn Cup Needle Roller Bearings Clutch One Way Bearing High Temperature from wholesalers
    • Buy cheap FC30 Drawn Cup Needle Roller Bearings Clutch One Way Bearing High Temperature from wholesalers
    • Buy cheap FC30 Drawn Cup Needle Roller Bearings Clutch One Way Bearing High Temperature from wholesalers
    • Buy cheap FC30 Drawn Cup Needle Roller Bearings Clutch One Way Bearing High Temperature from wholesalers

    FC30 Drawn Cup Needle Roller Bearings Clutch One Way Bearing High Temperature

    Ask Lasest Price
    Brand Name : MCBB/ Customization/ Any famous brand
    Model Number : FC30
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB
    Supply Ability : 30,0000pcs/month
    Delivery Time : Within 7days after confirmation
    • Product Details
    • Company Profile

    FC30 Drawn Cup Needle Roller Bearings Clutch One Way Bearing High Temperature

    FC30 Drawn Cup Needle Roller Clutch One Way Needle Bearing High Temperature


    Steel needle roller bearing, Descirption,


    1. Stamping outer ring needle roller one-way clutch bearing assembly FC25 FC30 FC35.


    2. One-way needle roller bearings, also known as needle roller clutches, are composed of a stamped outer ring and a plastic cage; the cage can be equipped with a plastic spring leaf or a stainless steel spring leaf to guide the needle. The beveled track and needle on the outer ring are used as Locking device.


    Steel needle roller bearing, Specification,


    Bearing ModelFC30
    Inner Diameter30mm
    Outer Diameter37mm
    Thickness20mm
    Weight0.036kg
    Dynamic load(N)5500
    Static load(N)6600
    Servicesupporting OEM&ODM

    Thrust needle bearing, Feature,


    One-way needle roller bearings, ie drawn cup needle roller clutches (one-way bearings) can be used as converters, check devices, overrunning clutches.


    More needle model,


    Shaft DiameterBearing DesignationMassBoundary DimensionsPermissible Torque MdLimiting speedSuitable Drawn Cup bearing
    Plastic springssteel springsFwDCShaftOuter ring
    3HF0306KF-0.936.560.2360007000HK0306TN
    4HF0406KF-14860.34340008000HK0408TN
    HF0406KFR-14860.34340008000HK0408TN
    6HF0612072612712000011000HK0608
    HK0608K2.861081.52000011000HK0608
    HF0612KFRHF0612R3610121.762300013000HK0608
    HF0812KFRHF0612R3610121.762300013000HK061208
    HF0612103.56121032000013000HK061208
    8HF0812KFHF08123.5812123.151700012000HK0808
    HF0812KRFHF0812R3.5812123.151700012000HK0808
    HF0812103.28121031600012000HK0808
    HF08145.3KF38145.341500011000HK081410
    HF081403.6814104.61500011000HK081410
    HF0816074.181675.51500011000HK101410
    HF1012KFHF081610281455.51600012000HK101410
    HF1012KFRHF08141248141251600012000HK101410

    Why choose us,


    Supporting 7days refund. NO MOQ, 1pcs is ok.


    Application,


    Its surface groove is mainly aimed at Diabolo manufacturers, and it has also rebated entity ferrule type one-way needle bearings, mainly for fitness equipment, and has also developed ultra-thin one-way needle bearings, mainly for precision machinery companies.

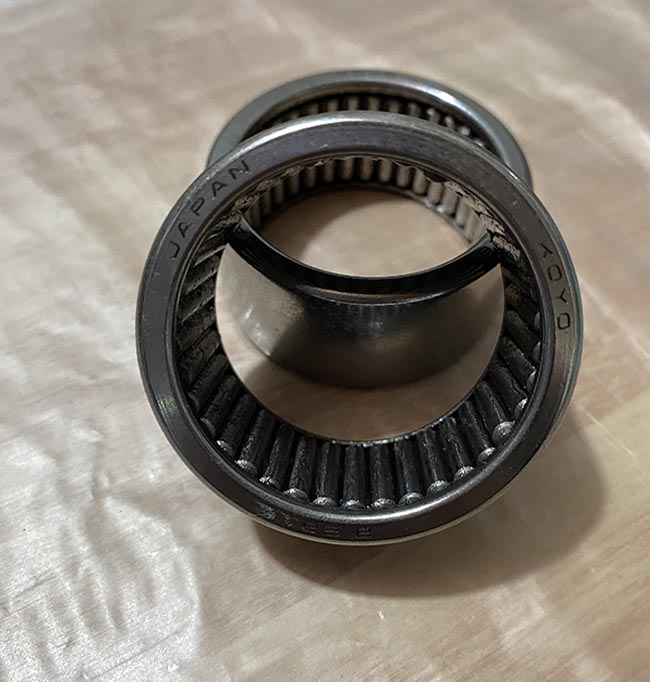

    Product picture show,



    If you need the price, welcome contact us for the price list.
